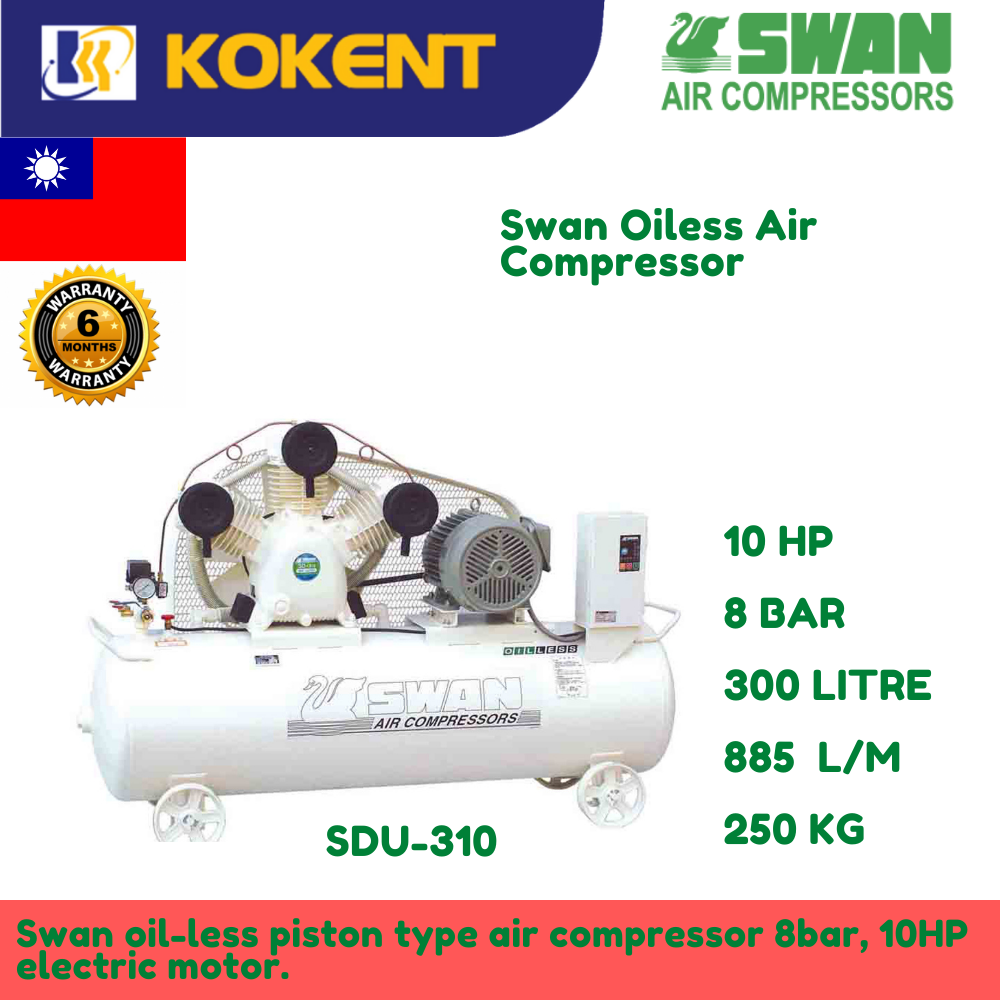

Swan Oiless Air Compressor SDU-310: 10HP, 8Bar, FAD885L/min, 3phase

Swan Oiless Air Compressor SDU-310: 10HP, 8Bar, FAD885L/min, 3phase
Swan Oiless Air Compressor SDU-310: 10HP, 8Bar, FAD885L/min, 3phase

Swan Oiless Air Compressor SDU-310: 10HP, 8Bar, FAD885L/min, 3phase

Product Code: SDU-310
Availability: Pre Order
Loading ...
Share:

Description

Model: SDU-310

Swan oil-less piston type air compressor 8bar, 10HP electric motor.

  • 3phase

Introduction

  • The SWAN exclusive patented oil free air compressor body, the real oil Oilless structural design, Oil-free clean compressed air, greatly reduce the cost of the Clean Air System, To provide better air quality.
  • Environmental protection, without the addition of lubricants, oil-free clean compressed air quality, suited to the needs of the electronics, hospitals, laboratories, food manufacturing industry.

Features

  • No oil in the compressor. Completely eliminate oil from the compressed air system.
  • Low maintenance and less operational costs.
  • Air receiver made by stainless steel or painted with powder coating for rustproof.
  • Various options for different application.
  • The best solution for Pure, oil-less quality air.

Control System

  • Pressure Switch System “P” Type
    The automatic pressure switch will stop and restart the compressor according to air demand.
    It is normally recommended for intermittent operation and smaller compressor units.

Specifications

Motor 10hp
Working Pressure (kg/cm²) 8 Bar
Compressor Speed 850 rpm
F.A.D 885 L/min
Tank Capacity 300 Liter
Compressor Block
Physical Dimension (L x W x H)
720mm x 480mm x 680mm
Weight (Bare Head only) 90kg
Compressor Unit
Physical Dimension (L x W x H)
1750mm x 650mm x 1300mm
Weight (Whole Unit) 250kg
