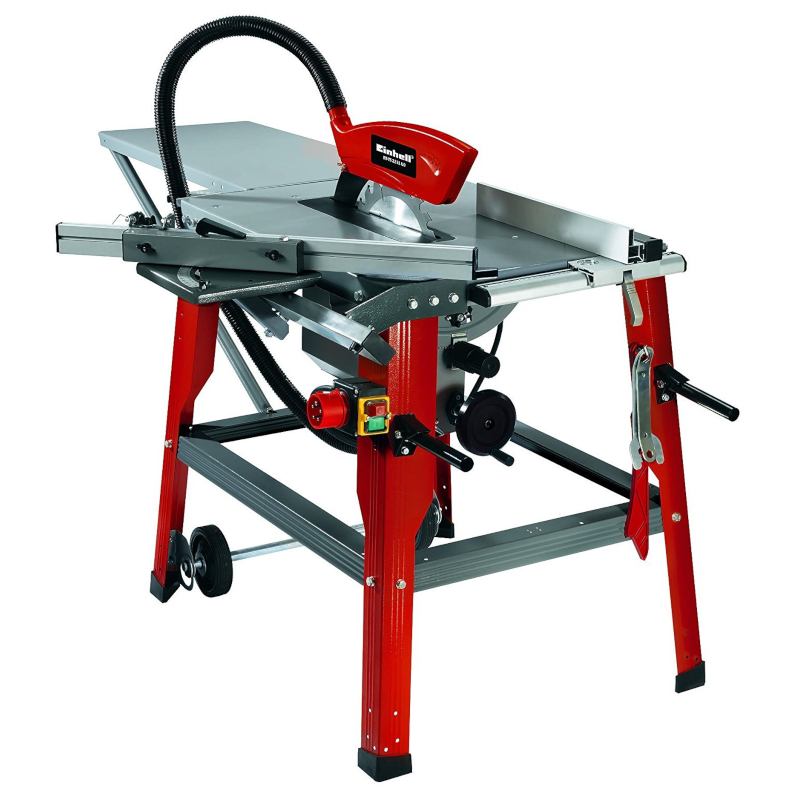

EINHELL Table Saw RT-TS 2231 UD
Table Saw RT-TS 2231 UD
The RT-TS 2231 UD circular bench saw is powered by a strong 2.2 kW induction motor with mechanical brake. The saw is powder-coated and therefore permanently protected against corrosion.
The ball-raced height adjustment permits easy and precise setting of the saw blade.
The integrated magnifying glass at the length cut scaling makes reading the scale more comfortable. The aluminium slide is equipped with a profile and can be positioned at an angle ranging from 0 – 45°. This ball-raced slide is guided along the saw bench by a galvanized guide rail.
Thanks to the undercarriage and handles, the saw can be transported by a single person.
Features
1. Powerful induction motor
2. Mechanical brake
3. Powder-coated framework and working table
4. Ball-raced slide with galvanized guard rail
5. Undercarriage and handles for easy transport
6. Eccentric locking with aluminium guide
7. Ball bearing saw blade height adjustment
8. Table extension
9. Bending range of saw blade 0 – 45°
10. Including dust extraction adapter Æ 100 mm
11. Carbide-tipped saw blade
Technical Spec
| MODEL | RT-TS 2231 UD |
|---|---|
| Art.-No. | 43.071.42 |
| Motor type | Induction motor |
| Power | 2,200 W (S6 40%) |
| Idle speed | 2,800 min-1 |
| Mains | 400 V 3~ 50 Hz |
| Cutting height | 90°: 83 mm; 45°: 60 mm |
| Table size | 790 x 580 mm |
| Working height | approx. 840 mm |
| Additional table | 790 x 400 mm |
| Machine size w/o additional table | 1,100 x 960 x 1,150 mm |
| Carbide-tipped saw blade | Ø 315 x Ø 30 x 3.6 mm 24 T |
| Range of saw blade | 0 – 45° |
| Range of sliding carriage | 0 – 45 |
