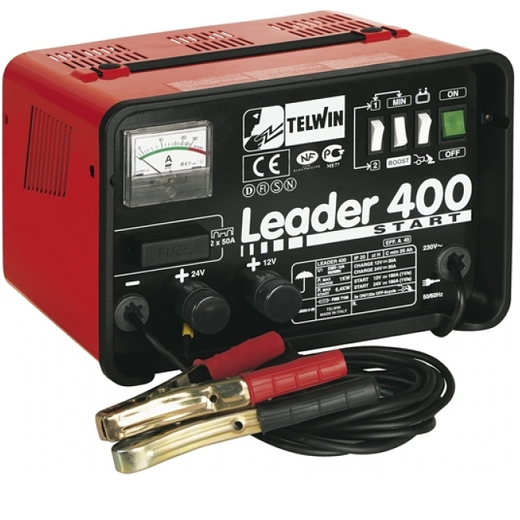

TELWIN Battery Charger 1kW-6.4kW, 12/24V Battery 12kg Leader400

TELWIN Battery Charger 1kW-6.4kW, 12/24V Battery 12kg Leader400
TELWIN Battery Charger 1kW-6.4kW, 12/24V Battery 12kg Leader400

TELWIN Battery Charger 1kW-6.4kW, 12/24V Battery 12kg Leader400

Product Code: Leader 400 Start
Availability: Pre Order
Loading ...
Share:

Model: Leader 400 Start

Features

  • Protected against overloading and reverse polarity
  • Selector switch for normal charge or fast charge (boost)
  • These chargers are equipped with a quick start function
  • Shows the charging and starting current
  • For a maximum starting current, the battery can first be charged for 5-10 minutes with fast charge (boost).
  • The unit is then switched back to "start" in order to start the vehicle.

Technical Information

  • Single-phase, portable battery chargers for charging lead accumulators
  • BL400 with engine starter for vehicles with diesel engines (up to 70 bhp)
  • With toggle switch for normal and fast charge (boost), quick start
  • BL220, BL400 charge voltage 12 V – 24 V, switchable
  • Equipped with protection against overloading and reverse polarity
  • With ampere meter for charging and starting current
  • Multiple charge current settings
  • Mains voltage 230 V

Specifications

Voltage   230V (Single phase)
Power Input    1000 W - 6400 W
Voltage (Laadspanning)   12V - 24V
Charge Current (Laadstroom)   45 A
Start Maximum 300 A
Rated Reference Capacity (Min./Max.)   20/7000 A
Dimensions (L x W x H) 265mm x 345mm x 230mm
Weight 11.4 kg
Display of Charging and Starting Current   2
Suited for Lead Battery Yes

Standard Accessories

  • Clamps
