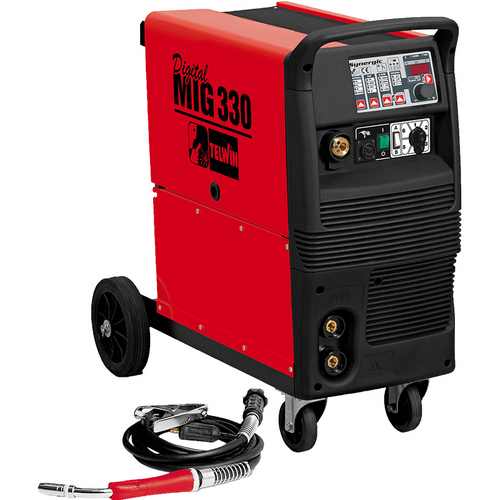

MIG Welding Machine: Digital MIG 330

Microprocessor controlled, MIG-MAG/BRAZING synergic welding machine. It is particularly suitable foruse in light metal works and body shop, for welding galvanised sheets, HSS high strength steel, stainless steel and aluminium sheets. The innovative SYNERGIC DIGIDESK technology allows for a rapidand easy setting of the welding programmes and grants always a high control both of the arc and of the quality of the welding.

  • automatic setting of wire speed according to the features of the material being welded, the shielding gas and the wire diameter
  • monitoring of powervoltage supply
  • 2/4 strokes, spot operations
  • automatic torch recognition
  • regulation of wire speed up slope, post gas time, wire burn-back time
  • use with spool gun torch
  • thermostatic protection.

Technical Spec

MODEL DIGITAL MIG 330 (820030)
Main voltage 230V | 50/60Hz | 1 Phase
Current range 40 – 320A
Max current 215A 25%
Current at 60% 140A
Max no load voltage 41V
Absorbed pwoer 7.5 – 11kW
Power factor 0.9 cosphi
Main fuse 16A / 10A
Adjustment position 12
Wire diameter 0.6 – 1.2mm (steel)
0.8 – 1.2mm (stainless steel)
0.8 – 1.2mm (aluminium)
0.8 – 1.2mm (brazing)
Protection class IP21
Dimension (L×W×H) 870×453×800mm
Weight 81kg
