TELWIN SPOT Welding Machine » Digital Car Puller 5000
Product Code: Digital Car Puller 5000
Availability: In Stock
RM0.00

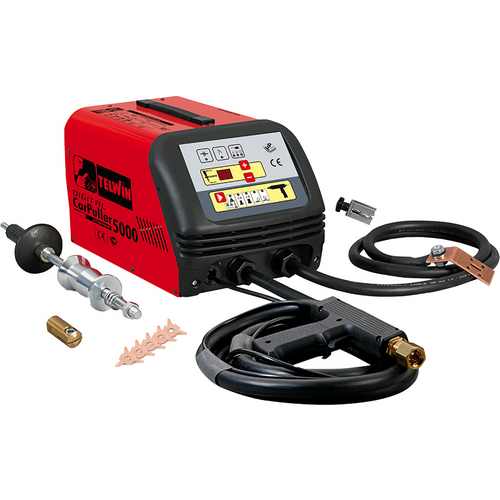

Microprocessor controlled, electronic system for repairing of metal sheets fit for applications in car body shops. The digital, multifunction control panel allows the automatic regulation of the spotwelding parameters according to the chosen tool. It is equipped with extractor and the accessories for spot welding of special washers.
Technical Spec
| MODEL | DIGITAL CAR PULLER 5000 (828073) |
|---|---|
| Main voltage | 230V | 50/60Hz | 1 phase |
| Max. no load voltage | 6V |
| Output current | 2500A |
| Max. absorbed power | 11kW |
| Absorbed power at 50% | 1.8kW |
| Main fuse | 16A |
| Power factor | 0.7 cosphi |
| Duty cycle | 1.3% |
| Protection class | IP22 |
| Dimensions (L×W×H) | 390×260×225mm |
| Weight | 25kg |
