TELWIN Spot Welding Machine
Product Code: Alucar 5100
Availability: In Stock
RM0.00

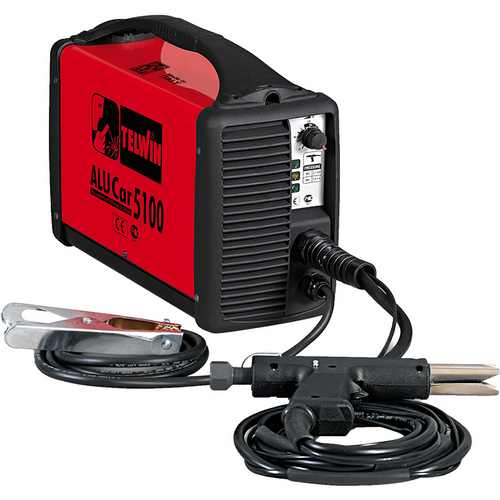

Spot Welding Machine: Alucar 5100
Power source for capacitor discharge welding of studs of 3 and 4 mm diameter and other accessories, with tip strike.
It is suitable for applications in car body shops.
It enables welding of studs on non-treated or non oxidized surfaces in steel, stainless steel, galvanized steel, brass and, in particular, aluminium.
The welding process is so short that it causes no alteration to the opposing surface even if painted, plastic-coated or galvanized.
Complete with gun, earth cable with clamp andaccessories.
| MODEL | ALUCAR 5100 (828069) |
|---|---|
| Main voltage | 230V 50/60Hz |
| No load voltage | 12V |
| Max absorbed power | 250Watt |
| Power factor | 0.6cosphi |
| Capacity | 19500 µF |
| Spot energy | 300J max |
| Spot time | 1 – 3ms |
| Number spottable studs | 7 studs/min |
| Spottable studs diameter | 3 – 4mm |
| Protection class | IP22 |
| Dimension (L×W×H) | 450×150×270mm |
| Weight | 11.7kg |
