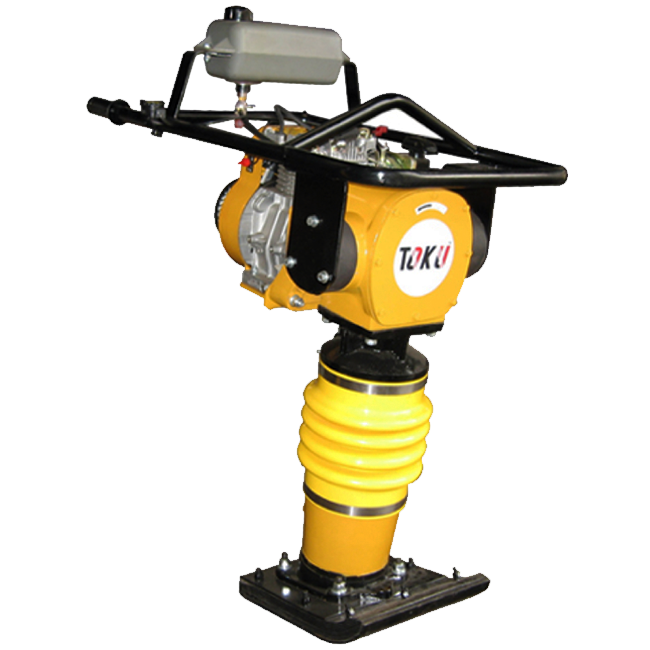

Toku Tamping Rammer Robin EH-12D 330x280mm Oil Bath 73kg TK-72B (VP)

Toku Tamping Rammer Robin EH-12D 330x280mm Oil Bath 73kg TK-72B (VP)
Toku Tamping Rammer Robin EH-12D 330x280mm Oil Bath 73kg TK-72B (VP)

Toku Tamping Rammer Robin EH-12D 330x280mm Oil Bath 73kg TK-72B (VP)

Product Code: TK-72B (Robin EH-12D)
Availability: Pre Order
Loading ...
Share:

Model: TK-72B (Robin EH-12D)


Price inclusives 6%GST.



Features



  • Tamping plate is made of high quality steel or maximum durabiiity.
  • High performance.
  • 360mm (L) x 300mm (W) plate size design for well balance and better tamping effciency.
  • Specially designed handle with anti vibration rubber mounted to reduce operator fatique during operation.
  • Direct drive from engine, powerful, stable in usage.

Applications

  • Backfilling Work
  • Embankment
  • Road Repairing Work
  • General Construction Work

Specifications

Engine Robin EH-12D
Max Output (HP/rpm) 2.5/3000
Fuel Gasoline
Shoe Size (L x W)mm 330 x 280
Blow/Min (vpm) 630 - 700
Fuel Tank Capacity (Liters) 2.0
Fuel Consumption (Liters/hr)    1.1
Travel Speed (m/min) 9 - 10
Impact Force (kgf) 1400 - 1600
Lubricating System Oil Bath
Weight (kg) 72
Diameter (L x W x H) mm 760 x 410 x 1045
