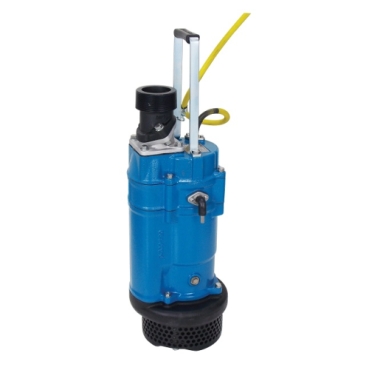

TSURUMI DEWATERING PUMP (3-PHASE) AUTOMATIC KTZE23.7

TSURUMI DEWATERING PUMP (3-PHASE) AUTOMATIC KTZE23.7
TSURUMI DEWATERING PUMP (3-PHASE) AUTOMATIC KTZE23.7

TSURUMI DEWATERING PUMP (3-PHASE) AUTOMATIC KTZE23.7

Product Code: KTZE23.7
Availability: Pre Order
Loading ...
Share:

Dewatering Pumps
(Automatic)

The KTZE-series is a submersible three-phase automatic cast iron high head heavy-duty drainage pump. An innovative electrode type relay unit built into the pump automatically starts and stops the pump to eliminate dry-running. This mechanism greatly reduces power consumption and extends operating life. The cast iron body with high-chromium cast iron impeller enables it to withstand demanding conditions found in construction, aggregate and mining applications. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air. The slim design allows the pump to be placed in a confined space. The discharge direction is selectable between vertical and inclined, which prevents folding or bending of the discharge hose.

Performance Curves
Model Selection
Discharge
Bore
(mm)
Model Motor
Output
(kW)
Phase Starting
Method
Solids
Passage
(mm)
50 KTZE21.5 1.5 Three D.O.L. 8.5
50 KTZE22.2 2.2 Three D.O.L. 8.5
50 KTZE23.7 3.7 Three D.O.L. 8.5
80 KTZE31.5 1.5 Three D.O.L. 8.5
80 KTZE32.2 2.2 Three D.O.L. 8.5
80 KTZE33.7 3.7 Three D.O.L. 8.5
100 KTEZ43.7 3.7 Three D.O.L. 8.5
