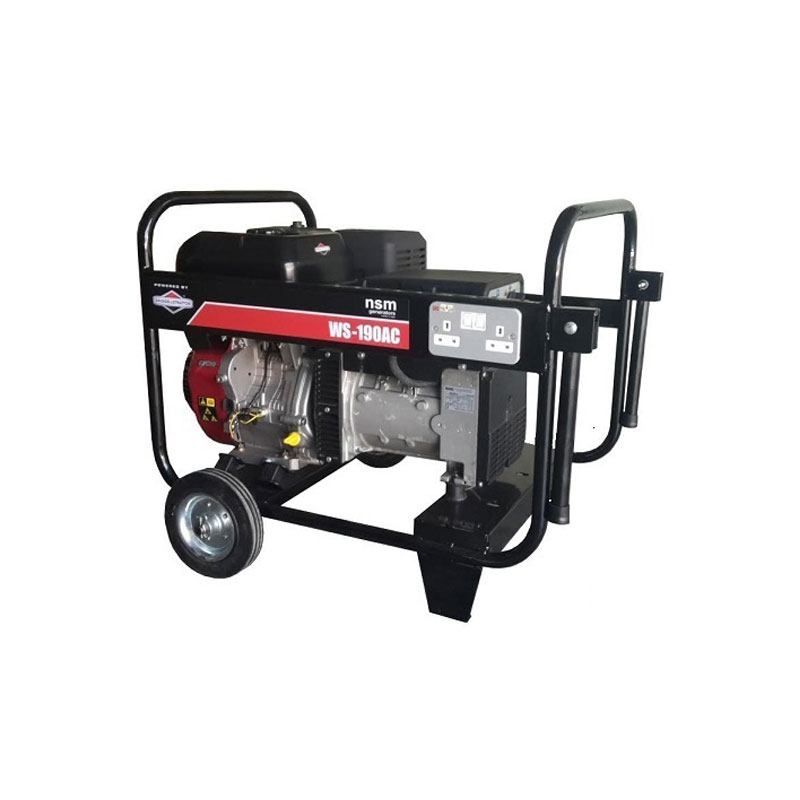

Welding Generator
Product Code: NSM WS-180/190AC
Availability: Pre Order
- Specifications
| AC & DC Welder | NSM/WS 190 AC |
| Protection | Ip23 |
| usable Electrodes | Acid Electrodes, Rutile Electrodes |
| Application | 2-Pole, Single Phase |
| Welding Current AC | 60 –> 190 A |
| Strike Voltage | 45+ 60V |
| AC Power Ouput (kVA) | 7.0 |
| AC Rated Voltage (v) | 240 |
| Alternator Frequency (Hz) | 60 |
| Electrodes Ø | 135A( Ø- 3.25mm) /190A(Ø-4mm) |
| Duty Cycle | 135A-60% / 190A-35% |
| Noise Level | 97db lwa / 72 db(a) 7 m |
| Dimensions (L xH x W) | 820 x 570 x 680 mm |
| Weight (Kg) | 77 |
