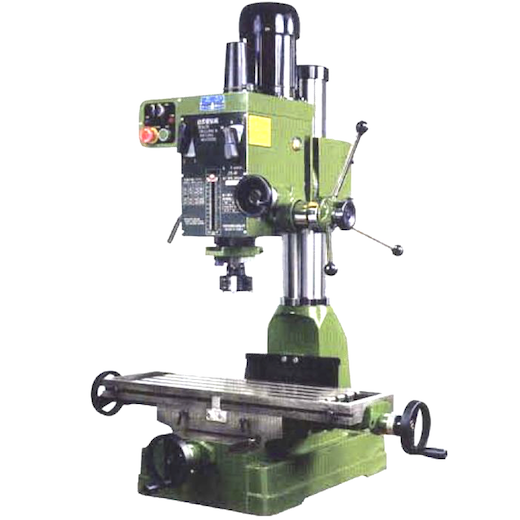

West Lake Milling & Drilling M12 750W 1600rpm 1Ø 275kg ZX-40
Product Code: ZX-40 (1 phase)
Availability: Pre Order
Model: ZX-40 (1 phase)
1 Phase is NOT available for Tapping.
Price inclusives 6%GST
Features
- Gear shift, friendly operation
- Wide range of speed adjustment
- Gear driven, gear quench high carrying capacity greatorsional moment
- Head rotation is operated with bracket. Will be much more precise while beveling a hole.
- High gear precision, low noise
Specifications
| Max. Tapping Capacity | M12 |
| Max. Drilling Capacity | Cast Iron: 31.5 mm Steel: 22mm |
| Width of Face Milling | 80 mm |
| Diameter of Vertical Milling | 28 mm |
| Spindle Travel | 120 mm |
| Distance Spindle Axis to Column Surface | 272.5 mm |
| Max. Distance Spindle Nose to Workable | 450 mm |
| Spindle Taper | MT 3 or R8 |
| Spindle Speeds Range | 95-1600 rpm |
| Spindle Speeds | 6 |
| Dimensions of Table | 730 x 210 mm |
| Travel of Worktable | 500 x 175 mm |
| Overall Height | 1100 mm |
| Headstock Travel | 350 mm |
| Motor | 750 W |
| Weight | 275 kg |
