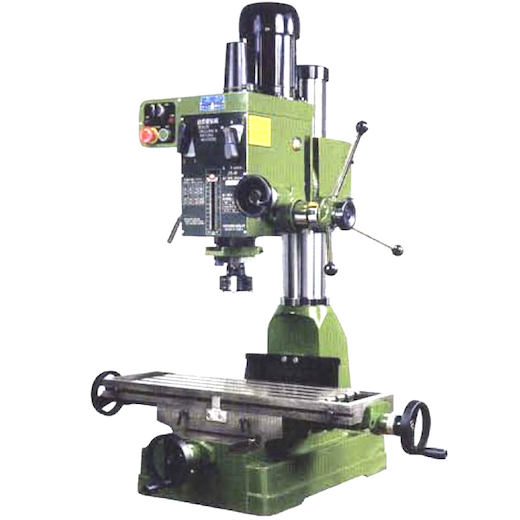

West Lake Milling & Drilling M12 750W 1600rpm 3Ø 275kg ZX-40

West Lake Milling & Drilling M12 750W 1600rpm 3Ø 275kg ZX-40
West Lake Milling & Drilling M12 750W 1600rpm 3Ø 275kg ZX-40

West Lake Milling & Drilling M12 750W 1600rpm 3Ø 275kg ZX-40

Product Code: ZX-40 (3 phase)
Availability: Pre Order
Loading ...
Share:

Model: ZX-40 (3 phase)
3 Phase is available for: Drilling, Milling & Tapping.

Price inclusives 6%GST

Features

  • Gear shift, friendly operation
  • Wide range of speed adjustment
  • Gear driven, gear quench high carrying capacity greatorsional moment
  • Head rotation is operated with bracket. Will be much more precise while beveling a hole.
  • High gear precision, low noise

Specifications

Max. Tapping Capacity   M12
Max. Drilling Capacity Cast Iron: 31.5 mm
Steel: 22mm
Width of Face Milling 80 mm
Diameter of Vertical Milling 28 mm
Spindle Travel 120 mm
Distance Spindle Axis to Column Surface 272.5 mm
Max. Distance Spindle Nose to Workable 450 mm
Spindle Taper MT 3 or R8
Spindle Speeds Range 95-1600 rpm
Spindle Speeds 6
Dimensions of Table 730 x 210 mm
Travel of Worktable 500 x 175 mm
Overall Height 1100 mm
Headstock Travel 350 mm
Motor 750 W
Weight 275 kg
