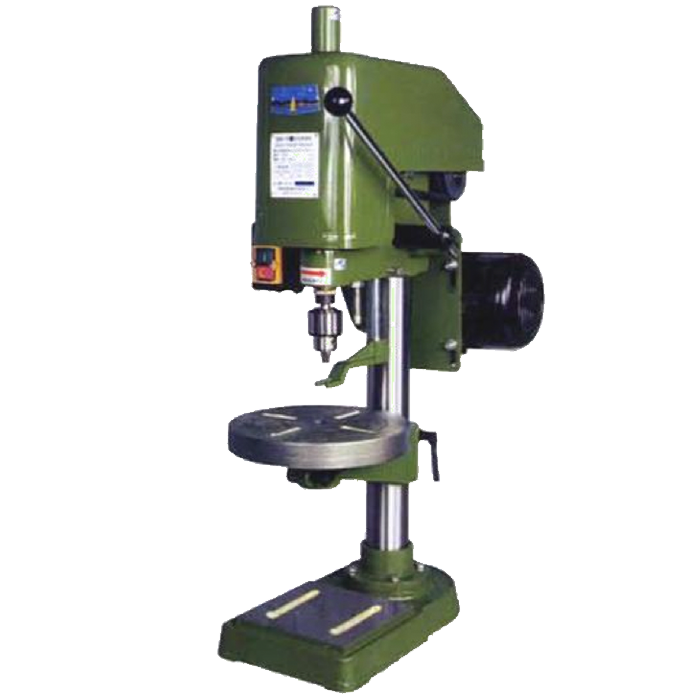

West Lake Tapping Machine M12, 370W, 930rpm, 48kg SWJ-12A
Product Code: SWJ-12A (1 phase)
Availability: Pre Order
Model: SWJ-12A (1 phase)
Price inclusives 6%GST
Features
- Using friction clutch in changing the direction of rotation. (Clock wise & Anti-clock wise)
- Very small impact and libration
- Friction clutch is protected with over loading mechanism. It helps to protect tap as well.
Specifications
| Max. Tapping Capacity | Cast Iron: M12 Steel: M8 |
| Max. Drilling Capacity | N/A |
| Diameter of Column | 60 mm |
| Spindle Travel | 45 mm |
| Distance Spindle Axis to Column Surface | 127 mm |
| Max. Distance Spindle Nose to Workable | 220 mm |
| Max. Distance Spindle Nose to Base | N/A |
| Spindle Taper | B16 |
| Spindle Speeds Range | 480, 850 / 260-750rpm 580, 1050 / 320-930rpm |
| Spindle Speeds | N/A |
| Dimensions of Worktable Surface | Ø 245mm |
| Dimensions of Base Worktable Surface | N/A |
| Overall Height | 825 mm |
| Motor | 370 W |
| Weight | 48 kg |
