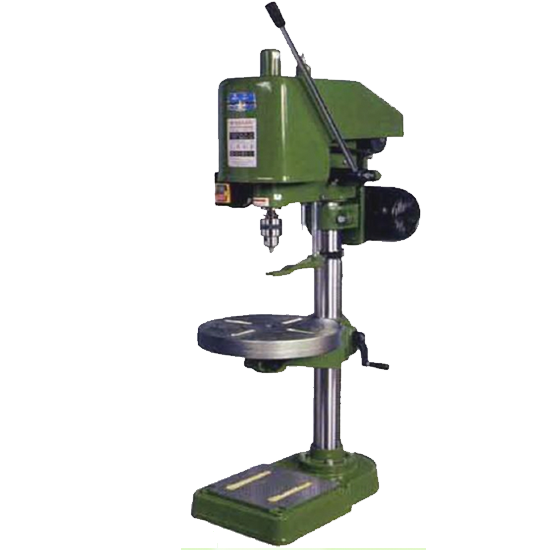

West Lake Tapping Machine M16, 750W, 650rpm, 1Ø, 102kg SWJ-16A

West Lake Tapping Machine M16, 750W, 650rpm, 1Ø, 102kg SWJ-16A
West Lake Tapping Machine M16, 750W, 650rpm, 1Ø, 102kg SWJ-16A

West Lake Tapping Machine M16, 750W, 650rpm, 1Ø, 102kg SWJ-16A

Product Code: SWJ-16A (1 phase)
Availability: Pre Order
Loading ...
Share:

Model: SWJ-16A (1 phase)

Price inclusives 6%GST

Features

  • Using friction clutch in changing the direction of rotation. (Clock wise & Anti-clock wise)
  • Very small impact and libration
  • Friction clutch is protected with over loading mechanism. It helps to protect tap as well.

Specifications

Max. Tapping Capacity   Cast Iron: M16
Steel: M12
Max. Drilling Capacity N/A
Diameter of Column 73 mm
Spindle Travel 50 mm
Distance Spindle Axis to Column Surface 183 mm
Max. Distance Spindle Nose to Workable 450 mm
Max. Distance Spindle Nose to Base N/A
Spindle Taper B18
Spindle Speeds Range 240-570rpm
275-650rpm
Spindle Speeds N/A
Dimensions of Worktable Surface Ø 320mm
Dimensions of Base Worktable Surface N/A
Overall Height 1230 mm
Motor 750 W
Weight 102 kg
