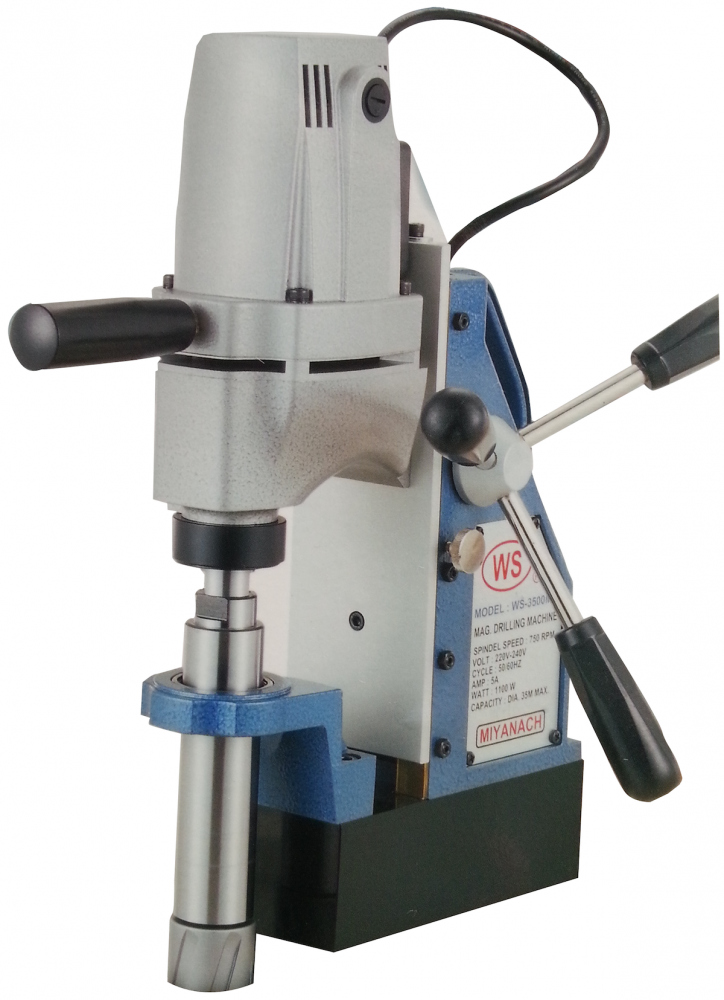

Wind Speed Magnetic Drill 1100W 780rpm 13-35mm 14kg WS-3500M

Wind Speed Magnetic Drill 1100W 780rpm 13-35mm 14kg WS-3500M
Wind Speed Magnetic Drill 1100W 780rpm 13-35mm 14kg WS-3500M

Wind Speed Magnetic Drill 1100W 780rpm 13-35mm 14kg WS-3500M

Product Code: WS-3500M
Availability: In Stock
Loading ...
Share:

Model: WS-3500M (Made in Taiwan)
Magnetic drilling machine up to capacity 35mm diameter.

Price inclusives 6%GST.

Features

  • 2 modes of cutter : "One Touch Shank" or "Weldon Shank" etc.
  • 2 drilling types : "Annular Cutter" OR "Drill Chuck" for loading "Twist Drill" or "Hole Saw".
  • Bearing bracket aligns cutter precisely : increase cutter and motor life.
  • Roller bearing 1 : Increase the stability of main shaft and prevent motor and shaft sway easily.
  • Roller bearing 2 : Reduce the abrasion hence, increase the life of cutter.
  • Double coil magnetic base : Prevent any distubances on progress while 1st coil is overheated.
  • Electronic switch : Provides constant voltage.
  • Light weight : 14kg

Specifications

Voltage 240V (Single Phase)
Power Input 1100W
Power Ampere 5A
No-load Speed 780rpm
Adapter Diameter 19.05mm
Max. Stroke 100mm
Coolant Supply via Tool Holder
Power consumption on Magnet 38W
Adhesion of Magnet 7350N / 750kgf
Dimension of Magnet (L x W x H) 186mm x 80mm x 58mm
Nett Weight 14kg
Coring Diameter (Annular Cutter) 13mm - 35mm
Coring Depth (Annular Cutter) 9mm - 50mm
Coring Diameter (HSS Drill Bit) 1 - 13mm

Standard Accessories



  • Wrenches
  • Handle
