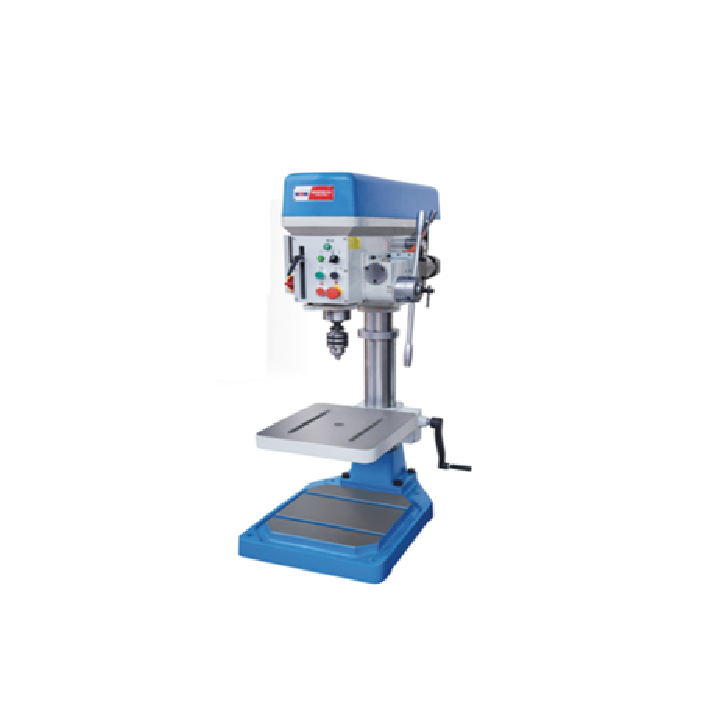

Xest Ling Bench Drill (II)
Product Code: ZB4132GP
Availability: Pre Order
Heavy duty auto-feed drilling machine Model : ZB4132GP ● Attractive ,elegant , pleasing design . ● Reasonable structure , high rigidity , high strength . ● Long spindle travel , wide machining range .
| Max. Drilling Capacity (mm) | 31 |
| Max. Tapping Capacity | M24/M20 |
| Diameter of Column (mm) | 100 |
| Spindle travel (mm) | 150 |
| Distance spindle axis to column generating line (mm) | 265 |
| Max. Distance spindle nose to table (mm) | 390 |
| Max. Distance spindle nose to base (mm) | 745 |
| Spindle taper | MT3 |
| Spindle speeds range (r/min) | 280 - 1875 |
| Dimension of worktable surface | 380 x 390 |
| Dimension of base | 645 x 470 |
| Overall height (mm) | 1370 |
| Motor (kw) | 1.5 |
| Net weight (kg) | 273 |
| Packing dimension (mm) | 1040 x 640 x 1510 |
