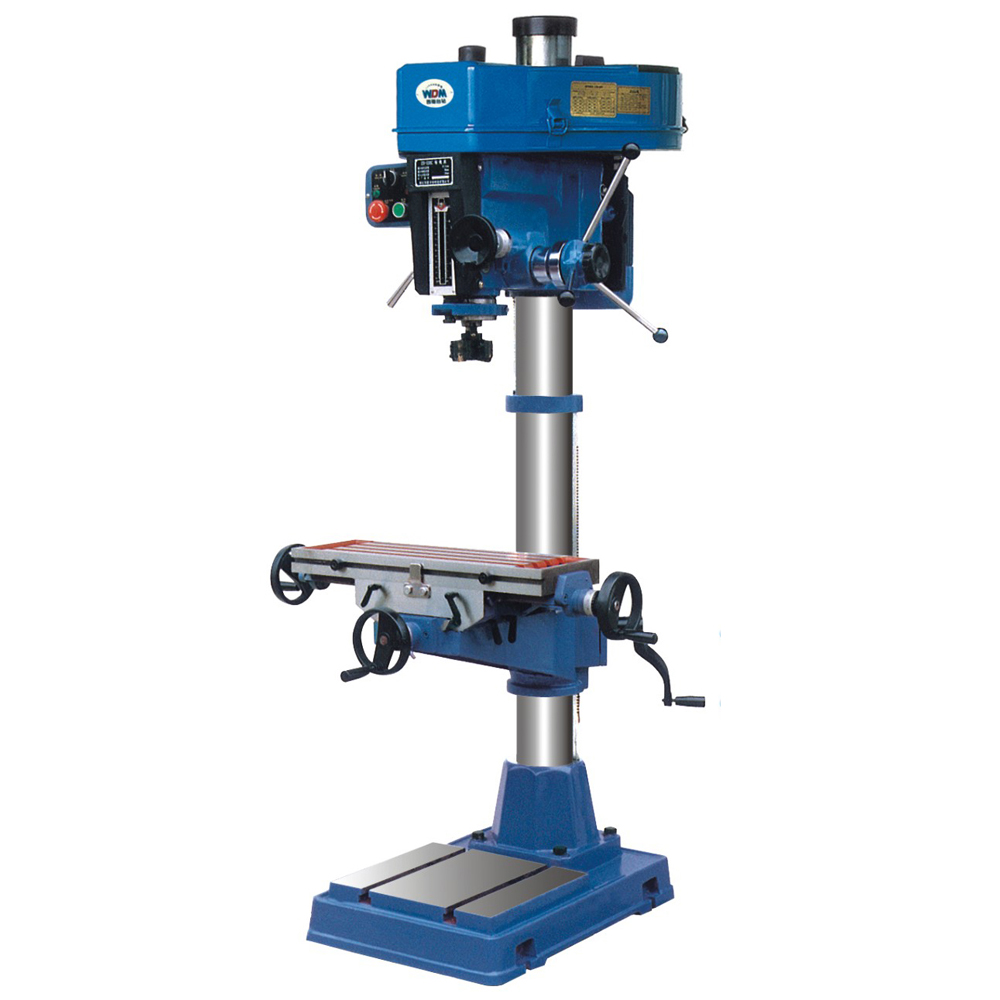

Xest Ling Drilling & Milling Machine 32mm,1500W,305kg ZX-32HC

Xest Ling Drilling & Milling Machine 32mm,1500W,305kg ZX-32HC
Xest Ling Drilling & Milling Machine 32mm,1500W,305kg ZX-32HC

Xest Ling Drilling & Milling Machine 32mm,1500W,305kg ZX-32HC

Product Code: ZX-32HC (without coolant system)
Availability: Pre Order
Loading ...
Share:

Model: ZX-32HC (without coolant system)
Milling and drilling machine. Three phase.

Price inclusives 6%GST.

Features

  • The machine adopt belt driving and the noisy low, machine can drill,enlarge ream and milling.
  • The machine has 12 series speed variable features, which can be widely fit for processing to kinds of common hard and soft material.
  • The head and table can rise and down freely, the head could also move reverse, enlarge the range of process.
  • The main body is stable and firm, effective working area of table is 585 x 190mm.

Specifications

Max. Drilling Capacity  31.5mm
Max. Face Mill Capacity 80mm
Diameter of Vertical Milling  22mm
Diameter of Column 115mm
Spindle Travel 130mm
Distance Spindle Axis to Column Generating Line 202mm
Max. Distance Spindle Nose To Table 745mm
Max. Distance Spindle Nose to Base 1245mm
Spindle Taper MT3
Spindle Speeds Range 100~2150 rpm
Spindle Speeds Series 12
Dimension of Worktable Surface 585mm x 190mm
Table Travel 370mm x 140mm x 515mm
Dimension of Base 635mm x 460mm
Overal Height 1760mm
Motor Output 1500 Watts
Voltage 380~415V Three Phase
Weight 305 kg
Packing Dimensions (L x W x H) 800mm x 750mm x 1860mm

Standard Accessories Included

  • Drill chuck
  • Arbor
  • Wrench
