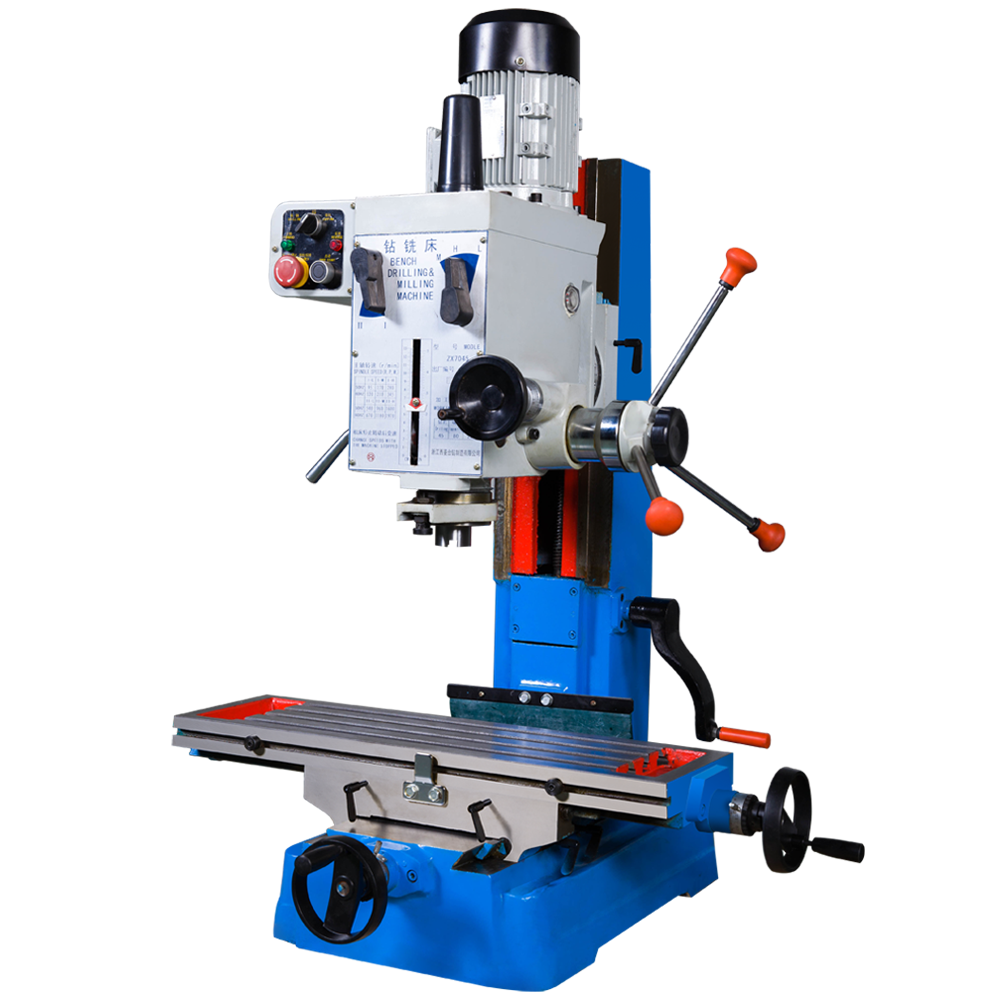

Xest Ling Drilling & Milling Machine 45mm,750W,278kg ZX-7045(S)

Xest Ling Drilling & Milling Machine 45mm,750W,278kg ZX-7045(S)
Xest Ling Drilling & Milling Machine 45mm,750W,278kg ZX-7045(S)

Xest Ling Drilling & Milling Machine 45mm,750W,278kg ZX-7045(S)

Product Code: ZX-7045(S)
Availability: Pre Order
Loading ...
Share:

Model: ZX-7045(S)
Milling and drilling machine. Single phase.

Price inclusives 6%GST.

Features

  • Positive head elevation on machined dovetail slideways.
  • Large square column casting ensures maximum rigidity.
  • Head elevation by geared crank handle, requires very little effort.
  • Close tolerance headstock gears ensure very quiet operation.
  • Table locks to X and Y axes.
  • Tapered gibs on X, Y and Z axes.
  • Large diameter spindle supported by taper roller bearings.

Specifications

Max. Drilling Capacity  45mm
Max. Face Mill Capacity 80mm
Diameter of Vertical Milling  28mm
Spindle Travel 120mm
Distance Spindle Axis to Column Generating Line 260mm
Max. Distance Spindle Nose Totable 475mm
Spindle Taper MT4
Spindle Speeds Range 95~1600 rpm
Spindle Speeds Series 6
Dimension of Worktable Surface 730mm x 210mm
Table Travel 450mm x 170mm
Overal Height 1050mm
Motor Output 750 Watts
Voltage 220~240V Single Phase
Weight 278 kg
Weight included delivery 318kg
Packing Dimensions (L x W x H) 860mm x 740mm x 1160mm

Standard Accessories Included

  • Drill chuck
  • Arbor
  • Wrench
