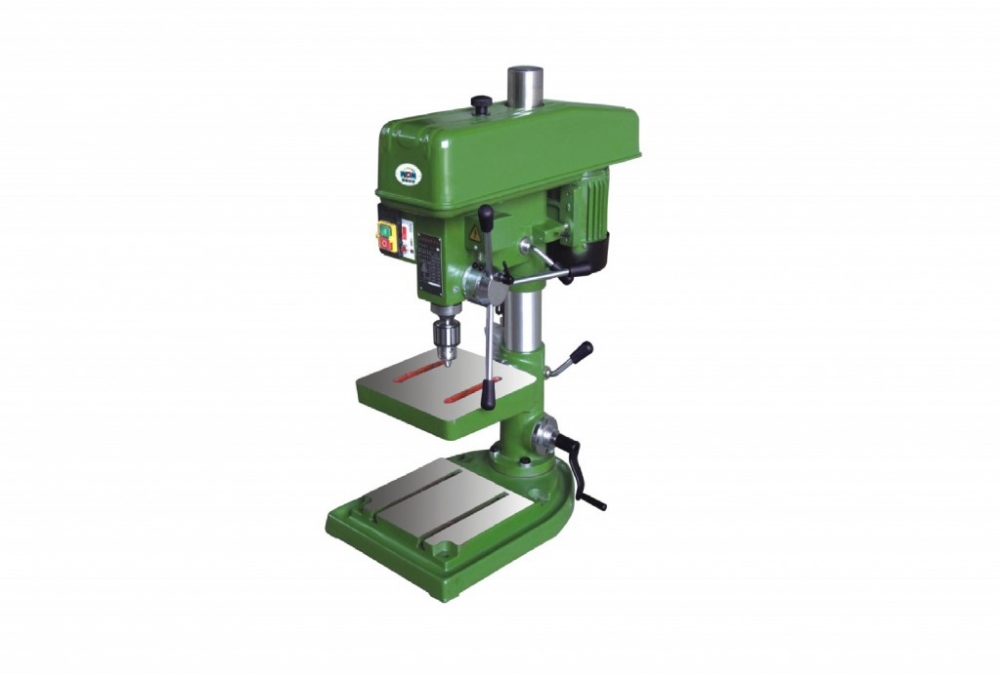

ZS Series Drilling & Tapping Machine (II)
Product Code: ZS4116B
Availability: Pre Order
- Using famous electrical equipment, stable feature and ever-lasting
- Change easily between drilling and tapping
- Special spindle design and arbor make sure chuck connections
STANDARD ACCESSORIES
- Drill chuck
- Taper sleeve
- Arbor
- Drift
- Wrench
SPECIAL ACCESSORIES
- Safety guards
- Vice
- Tapping
| Model | ZS4116B |
| Max.drilling/tapping capacity (mm) | D:16/T:M12/M10 |
| Diameter of column (mm) | 70 |
| Spindle travel (mm) | 100 |
| Distance spindle axis to column generating line (mm) | 193 |
| Maximum distance spindle nose to table (mm) | 315 |
| Maximum distance spindle nose to base (mm) | 556 |
| Spindle taper | MT2 |
| Spindle speeds range (r/min) | 480 - 4100 |
| Spindle speeds series | 5 |
| Dimension of table surface (mm) | 200 x 230 |
| Dimension of base (mm) | 528 x 360 |
| Overall height (mm) | 1037 |
| Power of motor (W) | 550 (4P) |
| G.W/N.W (kg) | 90 |
| Packing dimension (cm) | 77 x 42 x 95 |
