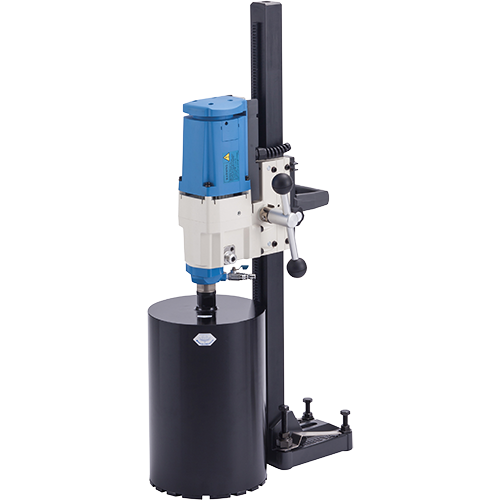

Application and Features
- Ideal machine for middle size jobs.
- NEW 2,300 W high power motor – R2021
- Less sensitive motor overload protection.
- Includes water collector ring.
- Normal Stand Column: 800 mm (31”) with 488 mm (19”) stroke.
- 50 x 50 mm (2” x 2”) square column.
Additional information
| APPLICATION MATERIAL |
Asphalt, Cement, Concrete, Cured Concrete, Green Concrete, Medium Hardness of Concrete, Reinforcement Concrete |
|---|---|
| MOTOR MODEL | |
| POWER RATED |
2,300W |
| NO. LOAD SPEED (RPM) |
500 – 1100rpm |
| RATED LOAD SPEED (RPM) |
400 – 850rpm |
| PREFERRED CORE BIT DIAMETER (MM) |
60 – 250mm |
| BASE TYPE |
Fixed Anchor |
| BASE SIZE |
158 x 217mm |
| COLUMN HEIGHT |
800mm |
| TRAVEL LENGTH |
548mm |
| BRAND |
