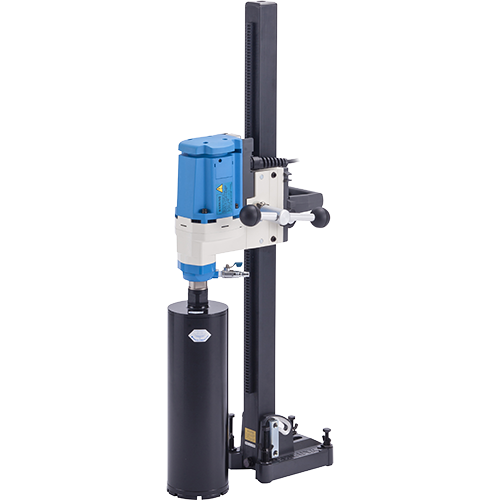

Application and Features
- Simple single-speed motor.
- Angle Drill AB52 Column: 1000 mm (39”) with 748 mm (29”) stroke.
- 50 x 50 mm (2” x 2”) square column.
- Includes water collector ring.
- Optional spindle adaptor for each countriesʼcircumstances.
Additional information
| APPLICATION MATERIAL |
Asphalt, Cement, Concrete, Cured Concrete, Green Concrete, Medium Hardness of Concrete, Reinforcement Concrete |
|---|---|
| MOTOR MODEL | |
| POWER RATED |
1,500W |
| NO. LOAD SPEED (RPM) |
850rpm |
| RATED LOAD SPEED (RPM) |
610rpm |
| PREFERRED CORE BIT DIAMETER (MM) |
60 – 160mm |
| BASE TYPE |
Swivel Anchor (AB52) |
| BASE SIZE |
146 x 205mm |
| COLUMN HEIGHT |
1000mm |
| TRAVEL LENGTH |
748mm |
| BRAND | |
| WEIGHT |
15.3kg |
