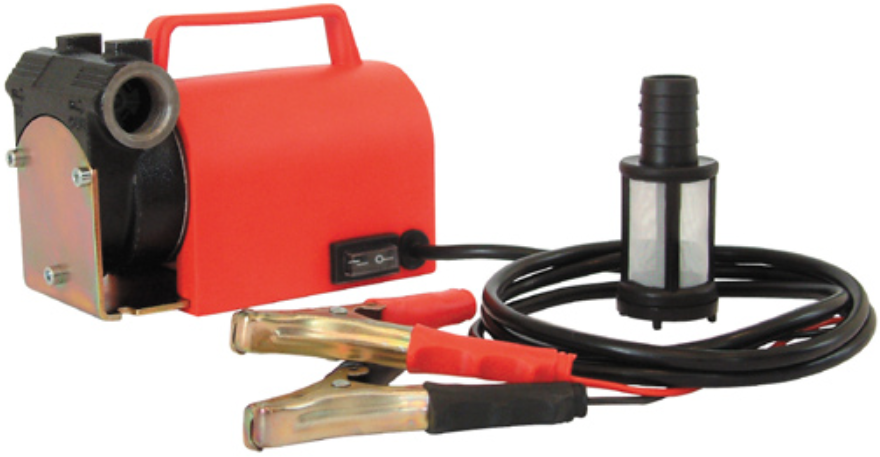

Adam Pumps for Diesel Transfer 40L/min, 1.3Bar, 24V DC Tech-24V
Product Code: DC Tech-24V (Made in Italy)
Availability: Pre Order
Model: DC Tech-24V (Made in Italy)
Diesel transfer pump with DC power.
Price inclusives 6% GST.
Features
- Robust design with motor weather protection rating IP55.
- With built in bypass valve.
- Materials of component:
a) Pump Housing: Cast iron
b) Rotor: Stainless steel
c) Vanes: POM
d) Seal for shaft: HNBR
e) Other seal: NBR - With built in filter.
Specifications
| Voltage CC | 24V |
| Maximum Current | 15 A |
| On/Off Switch | Yes |
| Length of Cable | 2 m |
| Fuse in Cable | 30 A |
| Duty Cycle | S2 30 min |
| Maximum Flow Rate | 40 L/min |
| Maximum Pressure | 1.3 Bar |
| Vacuum Height | 2 m |
| Inlet x Outlet Port | 3/4" x 3/4" |
| Operating Temperature | -20°C to 50°C |
| Approved Fluids | Diesel |
| Forbidden Fluids | Gas, Alcohol, Water |
| Sound Level | 75 dB |
| Weight | 4 kg |
Standard Accessories Included
- Cable and adaptor
- Filter
