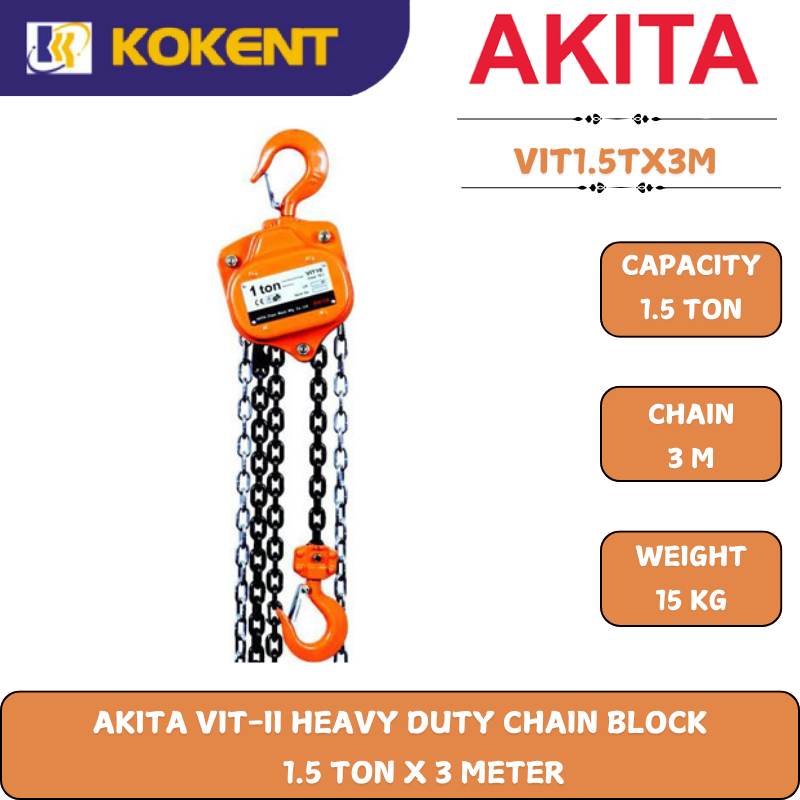

Akita Heavy Duty Manual Chain Block VIT-II Type 1.5 ton x 3 Meter

Technical Data

Capcity: 1.5 ton
Model No.: VIT15
No. of Falls: 1
Load Chain: 7.1 x 21 mm
Load Chain Grade: 100
Pull to Rated Load: 340 N
Proof Load: 2.25 ton
Hand Chain: 4.8 x 22 x 18 mm
Standard Lift: 3 m
Chain Length: 3 meter
Dimensions:
• a - 147 mm
• b - 174 mm
• c - 340 mm
• f - 33.5 mm
• g - 47 mm
Net Weight: 14.5 kg
Gross Weight: 15 kg
Extra Weight per M: 1.97 kg

Akita Heavy Duty Manual Chain Block VIT-II Type 1.5 ton

Lifting Equipment - Akita Heavy Duty Manual Chain Block VIT-II Type 1.5 ton

Heavy Duty Type for Professional & Industrial Users.

Standard Features

• Meets all pertinent world standards
• Lightweight high strength grade 100 alloy steel
load chain
• Compact design for limited headroom applications
• High strength steel frame and gear case built to
be durable for the rugged needs of construction
and maintenance rigging
• Heat-treated spur gear efficiently designed to
provide smooth load handling and low hand
chain pull
• Reinforced double pawl brake system and larger
dia. pawl springs ensure reliable brake
• Open frame design for self-cleaning, quick load
sheave inspection and easy hoist maintenance

Optional Features

• Caged roller bearings on load sprocket
• Zinc plated load chain
• Cast latches
• Cr plated side plate assemblies
• Thrust bearings in bottom hook assembly
