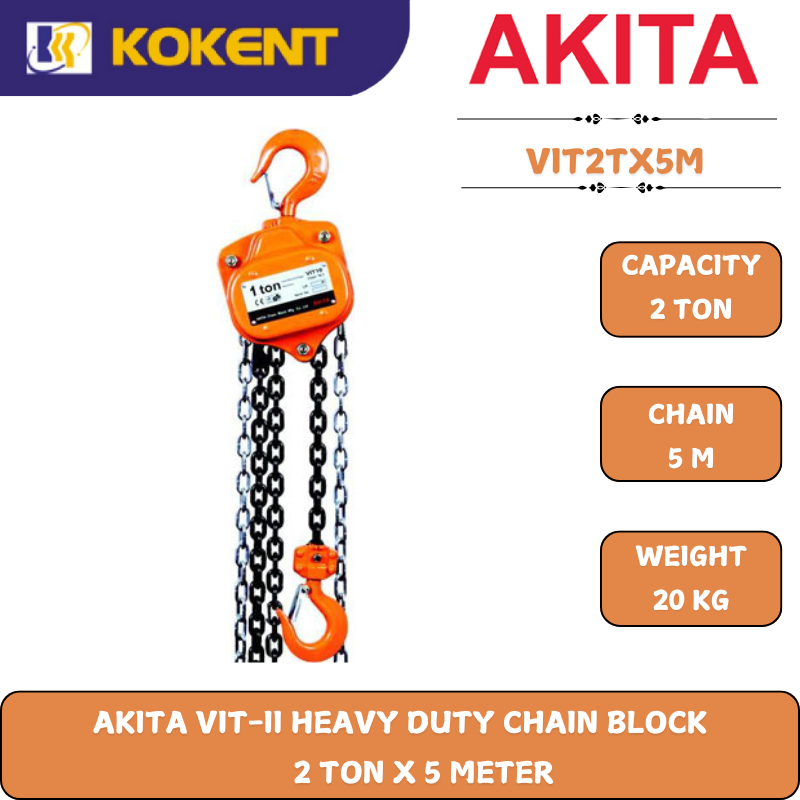

Akita Heavy Duty Manual Chain Block VIT-II Type 2 ton x 5 Meter

Technical Data

Capcity: 2 ton
Model No.: VIT20V
No. of Falls: 1
Load Chain: 7.1 x 21 mm
Load Chain Grade: 100
Pull to Rated Load: 450 N
Proof Load: 3 ton
Hand Chain: 4.8 x 22 x 18 mm
Standard Lift: 5 m
Chain Length:5 m
Dimensions:
• a - 147 mm
• b - 174 mm
• c - 355 mm
• f - 37 mm
• g - 52 mm
Net Weight: 15.5 kg
Gross Weight: 16 kg
Extra Weight per M: 1.97 kg

Akita Heavy Duty Manual Chain Block VIT-II Type 2 ton

Lifting Equipment - Akita Heavy Duty Manual Chain Block VIT-II Type 2 ton

Heavy Duty Type for Professional & Industrial Users.

Standard Features

• Meets all pertinent world standards
• Lightweight high strength grade 100 alloy steel
load chain
• Compact design for limited headroom applications
• High strength steel frame and gear case built to
be durable for the rugged needs of construction
and maintenance rigging
• Heat-treated spur gear efficiently designed to
provide smooth load handling and low hand
chain pull
• Reinforced double pawl brake system and larger
dia. pawl springs ensure reliable brake
• Open frame design for self-cleaning, quick load
sheave inspection and easy hoist maintenance

Optional Features

• Caged roller bearings on load sprocket
• Zinc plated load chain
• Cast latches
• Cr plated side plate assemblies
• Thrust bearings in bottom hook assembly
