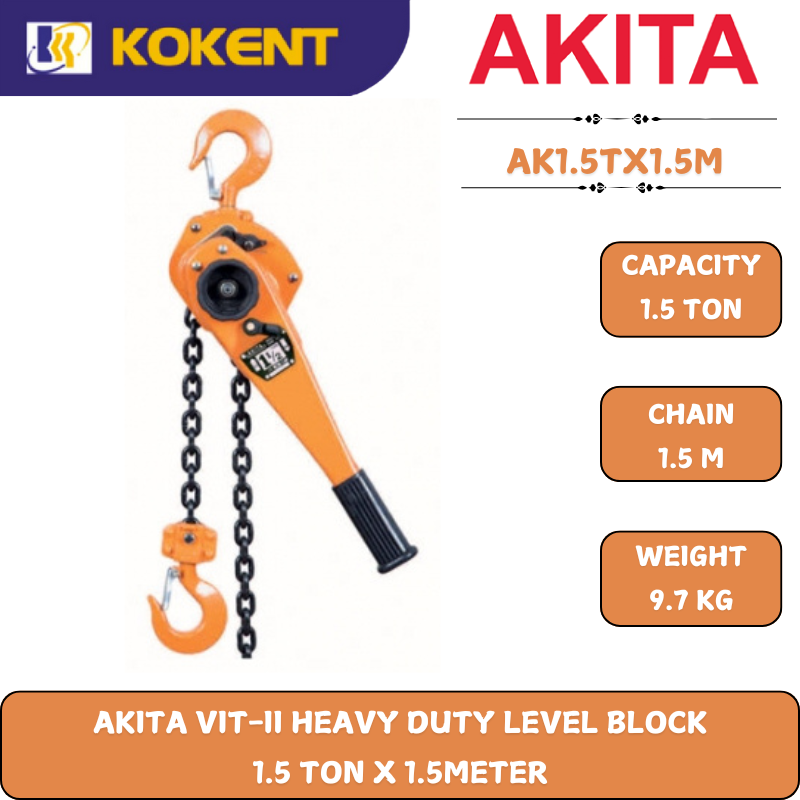

Akita Heavy Duty Lever Block VIT-II Type 1.5 ton

Technical Data

Capcity: 1.6 ton
Model No.: AK1.5TX1.5M
No. of Falls: 1
Load Chain: 7.1 x 21 mm
Load Chain Grade: 100
Pull to Rated Load: 193 N
Proof Load: 2.25 ton
Standard Lift: 1.5 m
Chain Length: 1.5 m
Dimensions:
• a - 163 mm
• b - 148 mm
• c - 47 mm
• d - 368 mm
• g - 33.5 mm
• h - 335 mm
Net Weight: 9.7 kg
Extra Weight per M: 1.1 kg

Akita Heavy Duty Lever Block VIT-II Type 1.6 ton

Lifting Equipment - Akita Heavy Duty Lever Block VIT-II Type 1.6 ton

A dependable lever hoist with capacities and features that make it ideal for all industrial lifting, pulling and position applications.

Standard Features

• Meets all pertinent world standards
• All steel construction for external impact resistance
• High-strength, cold-formed, stamped steel construction makes it lighter in weight yet impact resistant for
longer life
• Open frame design provides access for easy cleaning
and inspection
• 360° degree handle rotation with short stroke to ratchet loads
• Rubber grip handle for a better comfortable operation,
even without glove
• Easy free chaining operation

Improved Features

• Reinforced pinion shaft #8
• 360° rotation handle needs only 15 position loads, an
advantage in tight places
• All the load chains are grade 100
• Forged alloy steel hooks have wide throat opening
with deformation indicators. Hooks are designed to
spread at 270-350% of the rated load to indicate a
clear visual warning of hoist overload

Optional Features

• Overload Protection System
• Zinc Plated Load Chain
• Cast Latches
• Cast Enlarged End Ring
• Shipyard hook 1.5 t & 3 t
• Thrust Bearings in Bottom
Hook Assembly
