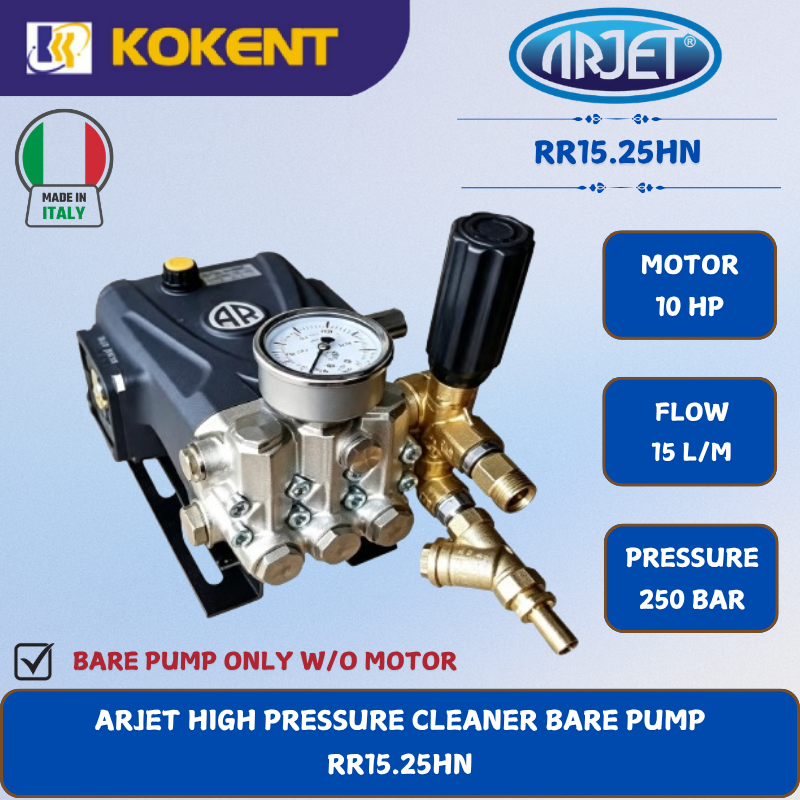

ANNOVI REVERBERI HIGH PTESSURE CUSTOMIZED BARE PUMP [250BAR.10HP.15L/MIN] RR15.25HN

3-piston alternating volumetric pumps for use on cleaning units and industrial systems. Can be coupled to various types of motors, directly or with flexible joint. Pump body and cover in die-cast aluminium alloy. Side cover may be blind or incorporate oil sight glass. Rear cover with oil drain outlet. Pistons driven by crank-connecting rod mechanism. Pump shaft in pressed high-strength steel. Oversized friction bearings. Connecting rods in die-cast special low-friction zinc-aluminium alloy. Bronze connecting rods available. One-piece ceramic pistons. Pump head in pressed brass or steel. Single or double gasket sealing system. Various types of gasket system available depending on application. Pump head internal components may be in different materials depending on application. Intake and delivery valves have plugs for easier maintenance.

*Regulating valve version available on request

Features and Benefits:

• Generate significant pressure, ranging from 1,000 to 4,000 Psi, allowing them to tackle demanding tasks.
• Compact Size and Lightweight: Easier to handle and install compared to other high-pressure pumps, especially beneficial for space-limited or portable applications.
• Durable Construction: Built to withstand harsh conditions and heavy-duty use, typically made from high-quality materials like stainless steel or cast iron for long-lasting performance.
• Corrosion Resistance: Designed to be resistant to corrosion, making them suitable for use with harsh chemicals, saltwater, and other corrosive substances.
• Wide Range of Configurations: Available in various configurations with different flow rates, pressure ratings, and port sizes to meet specific application requirements.
• Customizable: Sold without a motor or housing, allowing for greater flexibility for customization and integration into existing systems or custom setups.

Customized Standard Accessories:

• 1 x Annovi Reverberi Regulator
• 1 x WIKA pressure gauge
• 2 x Multi steel bracket
• 1 x M22 h/p brass adaptor (outlet)
• 1 x Inlet Y strainer filter
• 2 x Inlet brass fitting
