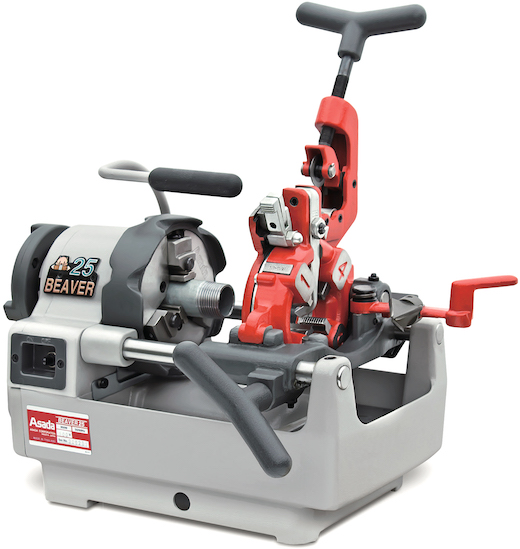

ASADA Pipe Threading Machine 1/2"-1", 52rpm, 600W (VP)

ASADA Pipe Threading Machine 1/2
ASADA Pipe Threading Machine 1/2

ASADA Pipe Threading Machine 1/2"-1", 52rpm, 600W (VP)

Product Code: BEAVER25AT
Availability: Pre Order
Loading ...
Share:

Model: BEAVER25AT
Pipe threading machine with threading capacity from 1/2" to 1".

Features

  • Automatic die head to reduce cut resistance for precise threads.
  • Dies made of special pre-heat treated steel, ensuring long life and easy threading.
  • Cutter & Reamer blade: most suitable shaped blade tip allows sharp cut and durability.
  • Hammer chuck:Outer ring designed to grip easily and to grab pipes firmly with less power.
  • The Jaw Body is wider giving greater load capacity and durability.
  • Jaw insert improves the centripetal clamping feature.
  • Spindle is supported by Sealed Ball Bearing. It ensures correct alignment and continued accuracy through lack of wear.
  • Class F insulation grade on the motor allows continuous operation.
  • The high capacity of Gear Pump operates even at low revolutions to assure precise threads.

Specifications

Threading Capacity Water Pipe: 1/4"~1"
Bolt: 3/8"~1"
Motor Capacity Input Power: 600W
Output Power: 350W
Voltage 240V, 50Hz
Spindle Speed 52rpm
Dimensions (L x W x H) 400mm x 317mm x 320mm
Weight 19kg

Accessories Included

  • Auto Die Head 1/2" to 1"
  • BSPT Dies 1/2"~3/4"
  • BSPT Dies 1"
