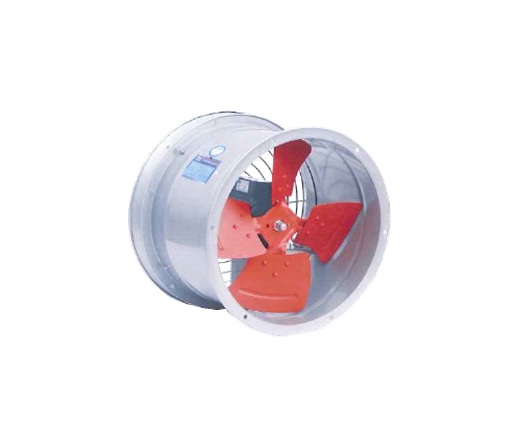

Axial Fan
Product Code: SF Series
Availability: Pre Order
- The fan adopts specially designed forward curved three-dimensional twisted blade.
- Low noise, large air flow, high efficiency, and stable air pressure.
- Suitable for ventilation in factories and civil buildings.
| Model |
SF3-4 |
SF4-4 |
SF5-4 |
SF6-4 |
| Diameter of Blade (mm) |
300/12" |
400/16" |
500/20" |
600/24" |
| Voltage (V) |
415V / 50Hz |
415V / 50Hz |
415V / 50Hz |
415V / 50Hz |
| Power (kw) |
0.08 |
0.55 |
0.75 |
2.2 |
| Speed (rpm) |
1420 |
1420 |
1420 |
1420 |
| Air Volume (m³/min) |
1600 |
5300 |
9300 |
18700 |
| Static (Pa) |
65 |
166 |
196 |
294 |
| Dimension (mm) |
390x390x285 |
495x495x325 |
605x605x335 |
730x730x480 |
| Net weight (KG) |
12 |
26 |
31 |
67 |
