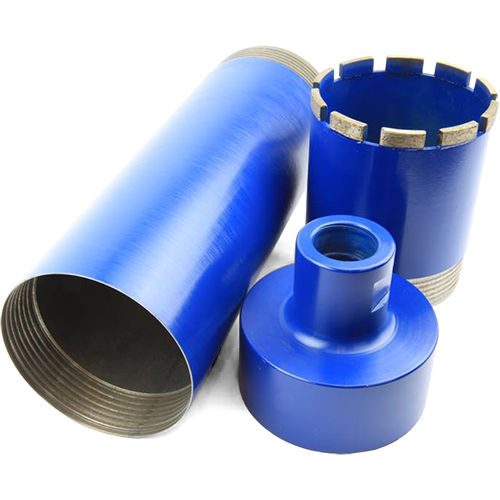

CBN DIAMOND BIT
Product Code: CBN DIAMOND BIT
Availability: Pre Order
Additional information
| APPLICATION MATERIAL |
Asphalt, Cured Concrete, Green Concrete, Reinforcement Concrete |
|---|---|
| CHARACTERIZE |
Expandable Working Length |
| WORKING LENGTH |
Expandable by add on tube |
| BOND DESIGN |
Standard Segment, Turbo Segment |
| DIAMETER |
1" / 25mm, 28mm, 29mm, 32mm, 1.5" / 35mm, 1.5" / 38mm, 42mm, 2" / 52mm, 56mm, 63mm, 66mm, 68mm, 3" / 76mm, 83mm, 3.5" / 89mm, 4" / 108mm, 5" / 127mm, 6" / 160mm, 7" / 180mm, 8" / 200mm, 10" / 250mm |
| SEGMENT HEIGHT |
10mm |
| SEGMENT WIDTH |
4.0mm |
| WELDING TECHNOLOGY |
Laser Welded |
| TREADLINE |
A Rod, UNC 1-¼ |
| GRADE |
Premium |
| USAGE |
Wet Coring |
| EQUIPMENT |
Core Drill Machine |
