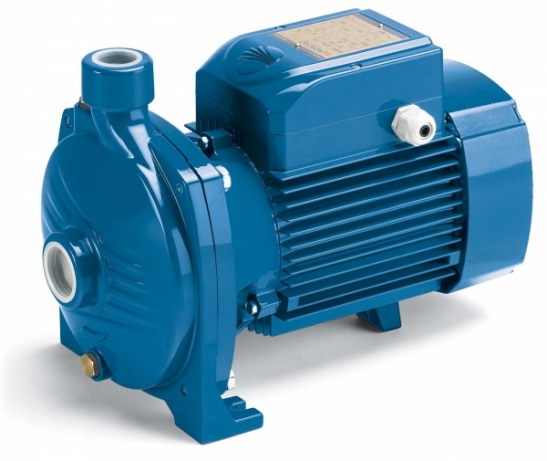

PEDROLLO Centrifugal pumps (II)
PERFORMANCE RANGE
- Flow rate up to 160 l/min (9.6 m³/h)
- Head up to 58 m
PATENTS - TRADE MARKS - MODELS
- Registered Community Design n° 406160-0001
APPLICATION LIMITS
- Manometric suction lift up to 7 m
- Liquid temperature between -10 °C and +90 °C (up to +40 for the version with the technopolymer impeller)
- Ambient temperature up to +40 °C
- Max. working pressure:
- – 6 bar for CP 100-130-132-150-158
- – 10 bar for CP 170-190-200
- Continuous service S1
OPTIONALS AVAILABLE ON REQUEST
- Special mechanical seal
- Other voltages or 60 Hz frequency
- IP55 class protection for CP 170, CP 170M
INSTALLATION AND USE
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made. As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
GUARANTEE
2 years subject to terms and conditions
PREFER CONTACT KENT
| MODEL
single-phase |
MODEL
three-phase |
POWER
kW |
POWER
HP |
0
0 |
0.6
10 |
1.2
20 |
1.8
30 |
2.4
40 |
3.0
50 |
3.6
60 |
4.2
70 |
4.8
80 |
5.4
90 |
6.0
100 |
6.6
110 |
7.2
120 |
7.8
130 |
8.4
140 |
9.0
150 |
9.6
160 |
| CPm 100 | - | 0.25 | 0.33 | 16 | 15 | 14 | 12.5 | 11 | 9 | 7 | ||||||||||
| CPm 130 | CP 130 | 0.37 | 0.50 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 15.5 | 14 | ||||||||
| CPm 132A | CP 132A | 0.60 | 0.85 | 23 | - | 22 | 21.5 | 21 | 20 | 19 | 18 | 17 | 16 | 14 | 12 | 9 | ||||
| CPm 150 | CP 150 | 0.75 | 1 | 29.5 | - | 29 | 28.5 | 28 | 27.5 | 26.5 | 26 | 24.5 | 23 | 21 | 18 | 15 | ||||
| CPm 158 | CP 158 | 0.75 | 1 | 36 | 34 | 33.5 | 33 | 32.5 | 31.5 | 30 | 28.5 | 27 | 25 | |||||||
| CPm 170 | CP 170 | 1.1 | 1.5 | 41 | - | - | 38 | 37 | 36 | 35 | 33.5 | 32 | 30 | 27.5 | 25 | 22 | ||||
| CPm 170M | CP 170M | 1.1 | 1.5 | 36 | - | - | 35 | 34.5 | 33.5 | 33 | 32 | 31 | 30 | 29 | 28 | 26.5 | 25 | 23 | 21 | 19 |
| CPm 190 | CP 190 | 1.5 | 2 | 50 | - | - | 46 | 44.5 | 43 | 41.5 | 40 | 38 | 36 | 34.5 | 32.5 | 30.5 | 28 | 26 | ||
| - | CP 200 | 2.2 | 3 | 58 | - | - | 55 | 54.5 | 53.5 | 52 | 51 | 49.5 | 48 | 46 | 44.5 | 44.5 | 42.5 | 40.5 | 38.5 | 36 |
| COMPONENT | CONSTRUCTION CHARACTERISTICS |
| PUMP BODY | Cast iron, complete with threaded ports in compliance with ISO 228/1 |
| BODY BACKPLATE | Stainless steel AISI 304 (cast iron for CP 170-170M-190-200) |
| IMPELLER | Stainless steel AISI 304 |
| MOTOR SHAFT | Stainless steel EN 10088-3 - 1.4104 |
| MECHANICAL SEAL |
Pump Model |
Seal Model |
Shaft Diameter |
Materials Stationary ring |
Materials Rotational ring |
Materials Elastomer |
| CP 100-130-132A | AR-12 | Ø 12 mm | Ceramic | Graphite | NBR | |
| CP 150-158 | AR-14 | Ø 14 mm | Ceramic | Graphite | NBR | |
| CP 170-170M-190-200 | FN-18 | Ø 18 mm | Graphite | Ceramic | NBR |
| CAPACITOR |
Pump single-phase |
Capacitance (230 V or 240 V) |
(110 V) |
| CPm 100 | 10 μF 450 VL | 25 μF 250 VL | |
| CPm 130 | 10 μF 450 VL | 30 μF 250 VL | |
| CPm 132A | 14 μF 450 VL | 30 μF 250 VL | |
| CPm 150-158 | 20 μF 450 VL | 60 μF 300 VL | |
| CPm 170-170M | 25 μF 450 VL | 60 μF 250 VL | |
| CPm 190 | 45 μF 450 VL | 80 μF 250 VL |
| BEARINGS | Pump | Model |
| CP 100-130-132A | 6201 ZZ / 6201 ZZ | |
| CP 150-158 | 6203 ZZ / 6203 ZZ | |
| CP 170-170M | 6204 ZZ / 6204 ZZ | |
| CP 190-200 | 6304 ZZ / 6204 ZZ |
ABSORPTION
|
MODEL single-phase |
VOLTAGE 230V |
VOLTAGE 240V |
VOLTAGE 110 |
MODEL three-phase |
VOLTAGE 230V |
VOLTAGE 400V |
VOLTAGE 240V |
VOLTAGE 15V |
| CPm 100 | 1.9 A | 1.55 A | 3.3 A | CP 130 | 2.0 A | 1.2 A | 1.8 A | 1.1 A |
| CPm 130 | 3.2 A | 2.9 A | 6.4 A | CP 132A | 2.9 A | 1.7 A | 2.4 A | 1.4 A |
| CPm 132A | 3.5 A | 3.2 A | 7.0 A | CP 150 | 4.2 A | 2.4 A | 4.1 A | 2.4 A |
| CPm 150 | 5.7 A | 5.4 A | 11.4 A | CP 158 | 4.4 A | 2.5 A | 4.3 A | 2.5 A |
| CPm 158 | 6.0 A | 5.8 A | 12.0 A | CP 170 - 170M | 5.2 A | 3.0 A | 5.1 A | 2.9 A |
| CPm 170 - 170M | 7.8 A | 7.2 A | 16.0 A | CP 190 | 7.5 A | 4.3 A | 7.3 A | 4.2 A |
| CPm 190 | 11.0 A | 10.0 A | 22.0 A | CP 200 | 9.0 A | 5.2 A | 8.3 A | 4.8 A |
PALLETIZATION
| MODEL single-phase | MODEL three-phase | GROUPAGE n° pumps | GROUPAGE H (mm) | GROUPAGE kg (1-) | GROUPAGE kg (3-) | CONTAINER n° pumps | CONTAINER H (mm) | CONTAINER kg (1-) | CONTAINER kg (3-) |
| CPm 100 | - | 105 | 1280 | 741 | - | 189 | 2190 | 1321 | - |
| CPm 130 | CP 130 | 105 | 1280 | 820 | 770 | 189 | 2190 | 1460 | 1360 |
| CPm 132A | CP 132A | 105 | 1280 | 890 | 860 | 189 | 2190 | 1590 | 1530 |
| CPm 150 | CP 150 | 70 | 1450 | 890 | 820 | 112 | 2240 | 1410 | 1300 |
| CPm 158 | CP 158 | 70 | 1450 | 860 | 790 | 112 | 2240 | 1360 | 1250 |
| CPm 170 | CP 170 | 50 | 1560 | 900 | 870 | 70 | 2120 | 1250 | 1200 |
| CPm 170M | CP 170M | 50 | 1560 | 900 | 870 | 70 | 2120 | 1250 | 1200 |
| CPm 190 | CP 190 | 36 | 1410 | 820 | 790 | 54 | 2040 | 1220 | 1170 |
| - | CP 200 | 36 | 1410 | - | 830 | 54 | 2040 | - | 1240 |
