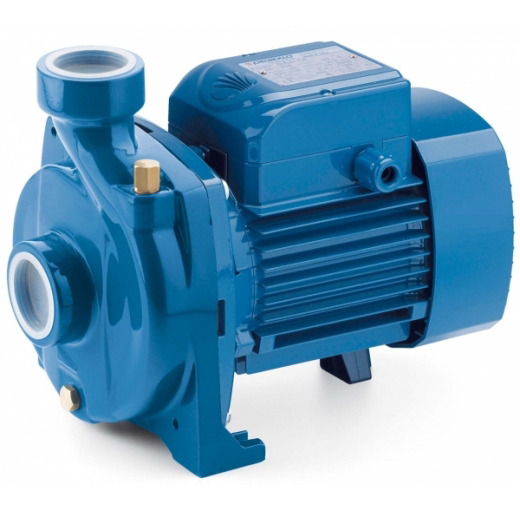

Centrifugal pumps with open impeller (IK)

PEDROLLO Centrifugal pumps with open impeller (II)

Product Code: NGA

Availability: Pre Order

017 432 8850 016 397 5838

Description

PERFORMANCE RANGE

Flow rate up to 350 l/min (21 m³/h)
Head up to 20 m

INSTALLATION AND USE

Suitable for use with liquids that are not chemically aggressive towards the materials from which the pump is made. The open impeller design allows liquids containing relatively high levels of impurities to be pumped without the risk of the impeller clogging. As a result of these characteristics the NGA series pumps are used specifi cally in industry and for transferring water from canals, rivers, reservoirs, tanks, etc. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

APPLICATION LIMITS

Manometric suction lift up to 7 m
Liquid temperature between -10 °C and +90 °C (up to +40 for the version with the technopolymer impeller)
Ambient temperature between -10 °C and +40 °C
Max. working pressure 6 bar
Passage of suspended solids up to Ø 10 mm
Continuous service S1

OPTIONALS AVAILABLE ON REQUEST

Pump with technopolymer impeller
Special mechanical seal
Other voltages or 60 Hz frequency

MODEL

single-phase

MODEL

three-phase

POWER

100

150

200

250

300

19.5

325

350

NGAm 1B

NGA 1B

0.55

0.75

14.5

10.5

NGAm 1A

NGA 1A

0.75

19.5

16.5

12.5

PREFER CONTACT KENT

COMPONENT	CONSTRUCTION CHARACTERISTICS
PUMP BODY	Cast iron, complete with threaded ports in compliance with ISO 228/1
BODY BACKPLATE	Stainless steel AISI 304
IMPELLER	Open impeller in stainless steel 316
MOTOR SHAFT	Stainless steel EN 10088-3 - 1.4104
ELECTRIC MOTOR	NGAm: single-phase 230 V - 50 Hz with thermal overload protector built-in to the winding. NGA: three-phase 230/400 V - 50 Hz. ➠ Pumps fi tted with the three-phase motor option off er IE2 (IEC 60034-30) class high performance – Insulation: F class. – Protection: IP 44.
