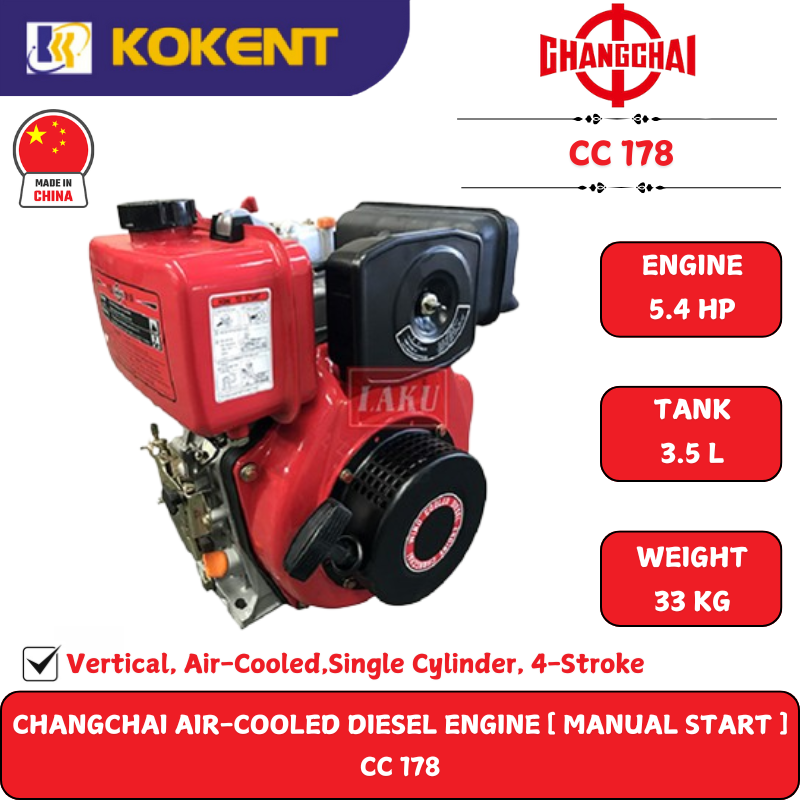

CHANGCHAI AIR-COOLED DIESEL ENGINE [ MANUAL START ] CC 178

Model

CC 170

CC 178

Type

Vertical, Air-Cooled,

Single Cylinder, 4-Stroke

Vertical, Air-Cooled, Single Cylinder, 4-Stroke

Combustion System

Direct Injection

Direct Injection

Bore x Stroke (mm x mm)

70 x 59

78 x 64

Compression Ratio

20

20

Rated Output/rpm (HP/rpm)

4.7 / 3600

5.4 / 3600

Starting System

Recoil Starter

Recoil Starter

Fuel Tank Capacity (l)

2.5

3.5

Fuel Consumption (g(ml)/kwh)

3600rpm : < 330

3600rpm : < 310

Weight (kg)

33

33

Dimension (LxWxH) (mm)

335 x 380 x 415

385 x 420 x 450
