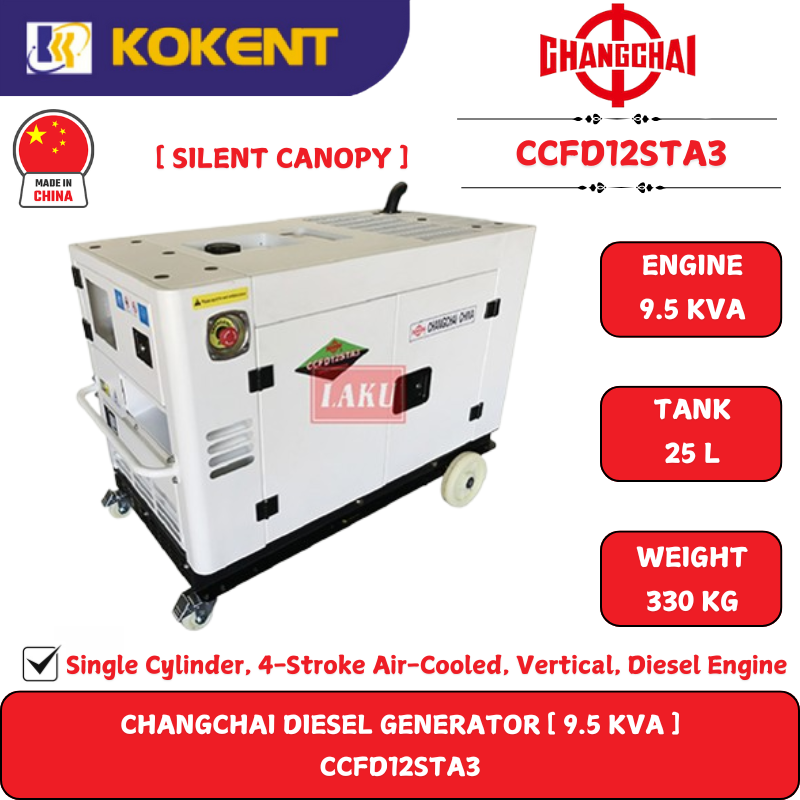

CHANGCHAI DIESEL GENERATOR [ 9.5 KVA ] CCFD12STA3

Product Code: CCFD12STA3

Availability: In Stock

017 432 8850 019 209 0701

Description

ChangChai Diesel Generator (SILENT CANOPY)

[CCFD-Series]

Changchai is one of the earliest internal-combustion engine manufacturers in China. It is the first listed company in the national agricultural machinery industry. Changchai constantly improves their manufacturing process to provide end-users with the best quality diesel generator (Silent Canopy).

Model	CCFD12STA3
Generator Capacity (KVA)	9.5
Generator Rated Voltage (V)	230 / 400
Generator Rated Speed (rpm)	3000
Generator Rated Frequency (Hz)	50
Generator Factor	0.8
Generator Connection Type	Three Phase 4 Wires
Generator Fuel Tank Capacity (L)	25
Engine Model	EV80
Power (hp)	16
No. of Cylinders & Configuration	In-Line 2-Cylinder
Engine Method of Operation	4 Stroke
Engine Speed Regulation	Electronic Regulation
Engine Starting System	12V Electric Starting
Engine Cooling Mothod	Closed Circuit Cooling System
100% Load Fuel Consumption (L/h)	≤ 285
Weight (kg)	330
Overall Dimension (LxWxH) (mm)	1350 x 790 x 840
