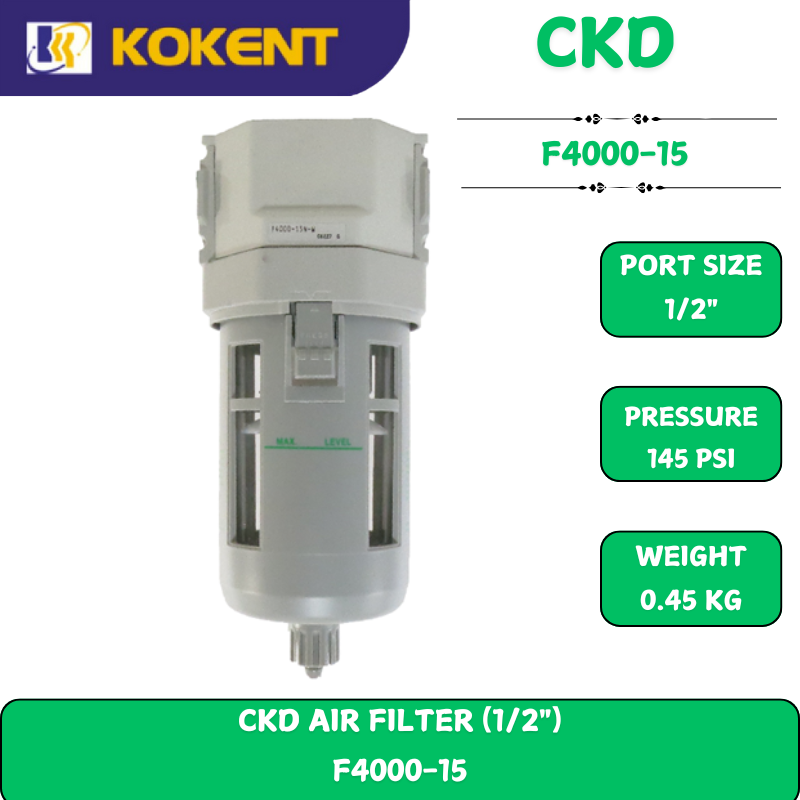

CKD F4000-15 FRL Air Filter 1/2"

CKD F4000-15 FRL Air Filter 1/2 Inch consists of 5μm elements for dust removal, and 0.3μm elements for tar removal.


FEATURES

  • Long service life element
  • Standard (5 μm) element "Blank"
  • Submicron (0.3 μm) element "Y" option
  • F.R.L. combination: easily upgraded using unified key boundary dimensions and a diverse range of options and variations


SPECIFICATIONS

Working Fluid Compressed Air
Max Working Pressure 1.0MPa
Withstand Pressure 1.5MPa
Ambient Temperature 5 ~ 60°C
Filtration Rating 5μm or 0.3μm
Drain Capacity 80cm³
Port Size 1/2"
Product Weight 0.45kg




WHAT'S IN THE BOX

1x CKD F4000-15 FRL Air Filter 1/2 Inch

1x Operating Manual
