CKD AIR FILTER FR UNT W3000-10 (3/8")

Product Code: W3000-10
Availability: In Stock
Loading ...
017 432 8850012 387 8850
Share:

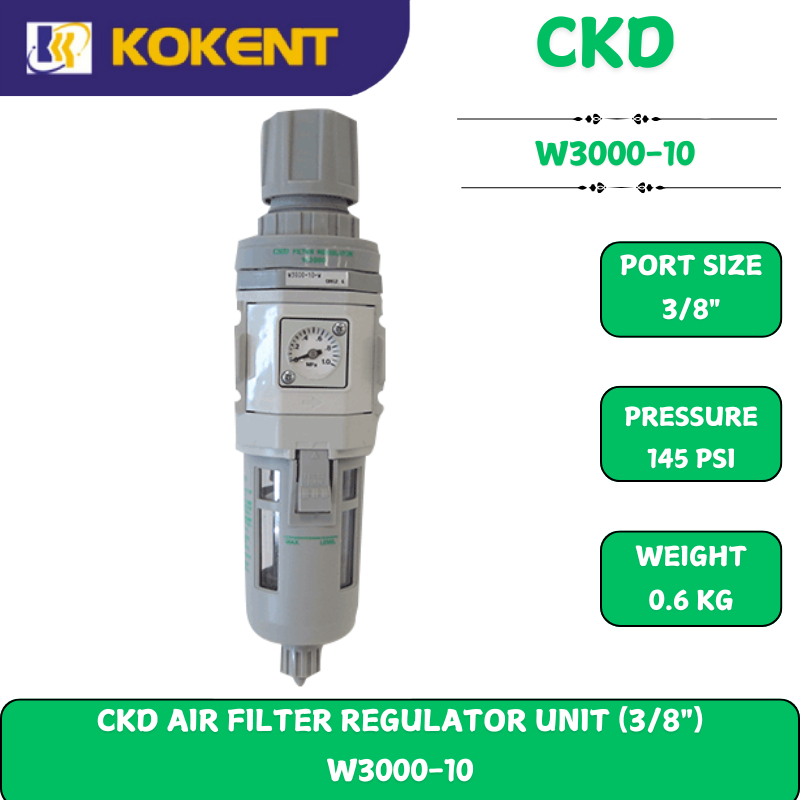

W3000-10-W Series Filter Regulator

CKD Air Filter Regulator Standard White Series
New Series using integrated filter and regulator, 5μm elements for dust removal, and 0.3μm elements for tar removal.

Description

CKD W3000-10-W Air Filter Regulator Standard White Series

Model No: W3000-10-W
Port Size: Rc 3/8
Rated Filtration: 5 micrometer
Working fluid: Compressed air
Max. working pressure: 1 MPa
Set Pressure Range: 0.05 to 0.85 MPa
Operating Temperature Range: 5 to 60 °C
Filtration rating μm 5 or 0.3
Drain capacity: 45 cm³
Accessories: Pressure Gauge, Bowl guard
