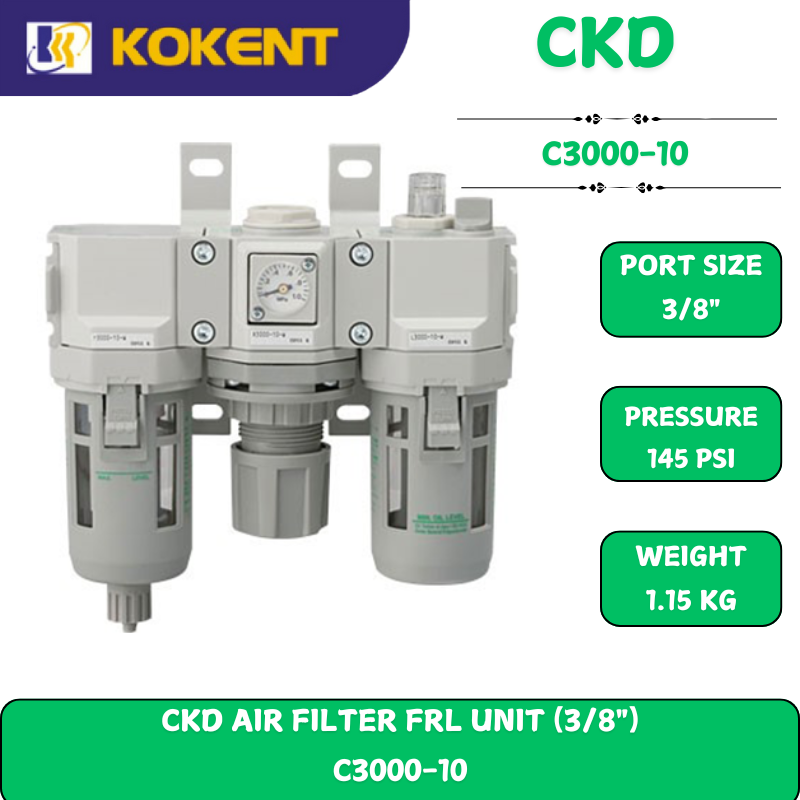

CKD AIR FILTER FRL UNT C3000-10 (3/8")

CKD C3000-10 FRL is a compact modular design in which major boundary dimensions of devices such as filters, regulators, lubricators are unified. For direct usage with applications.

FEATURES:

★ F.R.L. combination: Systems are easily upgraded using unified key boundary dimensions and a diverse range of options and variations

★ Compacting, modularization: Main dimensions (width and depth) of F.R.L. products have been standardized as compact module. Accurate assembly dimensions can be obtained with simple calculations

★ Long service life element: This element incorporates original chemical fiber structure, which has a rough surface and gradually becomes finer toward the interior. Clogging is greatly reduced, and the element life is greatly extended

SPECIFICATIONS:

- Filter: F3000-10-W

- Regulator: R3000-10-W

- Lubricator: L3000-10-W

- Working Fluid: Compressed Air

- Maximum Working Pressure: 1.0MPa

- Proof Pressure: 1.5MPa

- Ambient Fluid Temperature: 5 ~ 60°C

- Filtration Rating: 5μm

- Set Pressure: 0.05 (≈7.3 psi, 0.5 bar) to 0.85 (≈120 psi, 8.5 bar)

- Minimum Drip Flow Rate: 0.03m³/min(ANR)

- Pressure Relief: With relief mechanism

- Oil Storage Capacity: 85cm³

- Drain Capacity: 45cm³

- Oil Used: Turbine oil Class 1 ISO VG32 (spindle oil cannot be used)

- Port Size: 3/8"

- Weight: 1.15kg

WHAT'S IN THE BOX:

1x CKD C3000-10 FRL Integrated Air Filter Regulator and Lubricator 3/8 Inch
