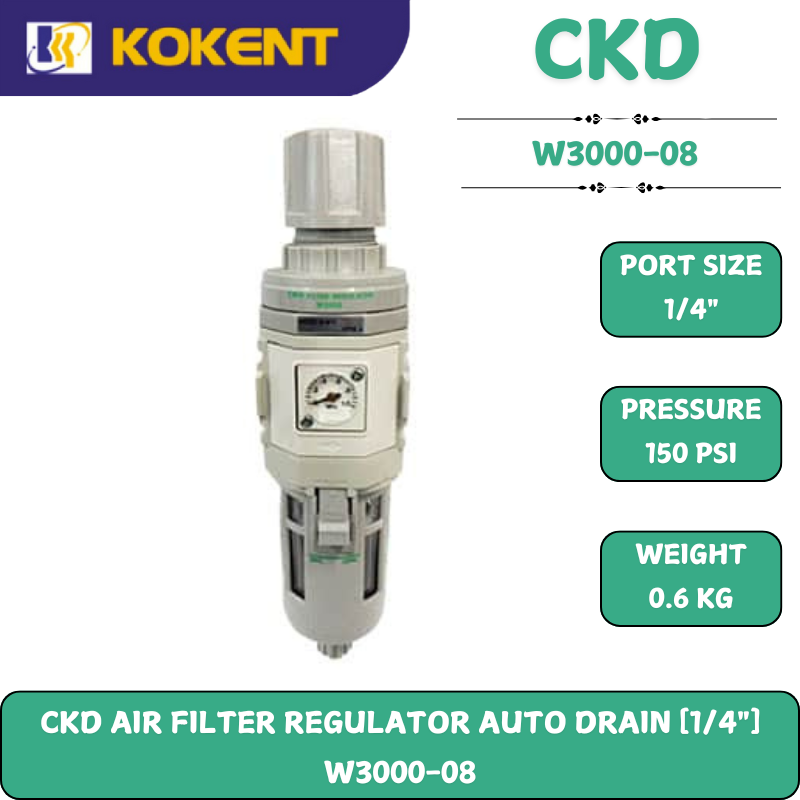

CKD AIR FILTER REGULATOR AUTO DRAIN [1/4"] W3000-08
Product Code: W3000-08
Availability: In Stock
W3000-8-W Series Filter Regulator
New Series using integrated filter and regulator, 5μm elements for dust removal, and 0.3μm elements for tar removal.
Description
CKD W3000-8-W Air Filter Regulator Standard White Series
Model No:W3000-8-W
Port Size:Rc 1/4
Rated Filtration:5 micrometer
Working fluid:Compressed air
Max. working pressure:1 MPa
Set Pressure Range:0.05 to 0.85 MPa
Operating Temperature Range:5 to 60 °C
Filtration rating μm5 or 0.3
Drain capacity:45 cm³
Accessories:Pressure Gauge, Bowl guard
