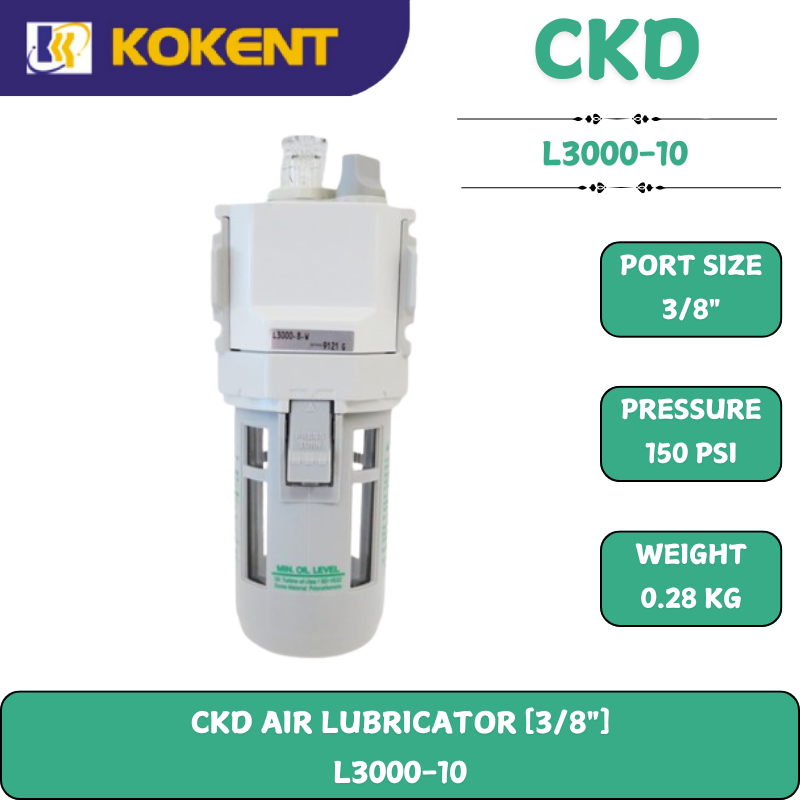

CKD AIR LUBRICATOR [3/8"] L3000-10

CKD L3000-10 FRL Air Lubricator 3/8"

CKD L3000-10 FRL Air Lubricator supplies fine oil mist. With double plastic structure is adopted, oil dripping can be achieved from any angle.

FEATURES

Oil drip adjustment knob with lock: Oil dripping is easily adjusted manually without a tool

Double plastic structure: A double plastic structure is adopted, so oil dripping can be confirmed from 360°

SPECIFICATIONS

Working Fluid : Compressed Air

Max Working Pressure : 1.0MPa

Withstand Pressure : 1.5MPa

Relief : With relief mechanism

Ambient Temperature : 5 ~ 60°C

Min. drip flow rate : 0.03m³/min

Oil Storage Capacity : 85cm³

Oil Used : Turbine oil Class 1 ISO VG32 (spindle oil is strictly prohibited)

Port Size : 3/8"

Product Weight : 0.28kg

WHAT'S IN THE BOX

1x CKD L3000-10 FRL Air Lubricator 3/8 Inch
