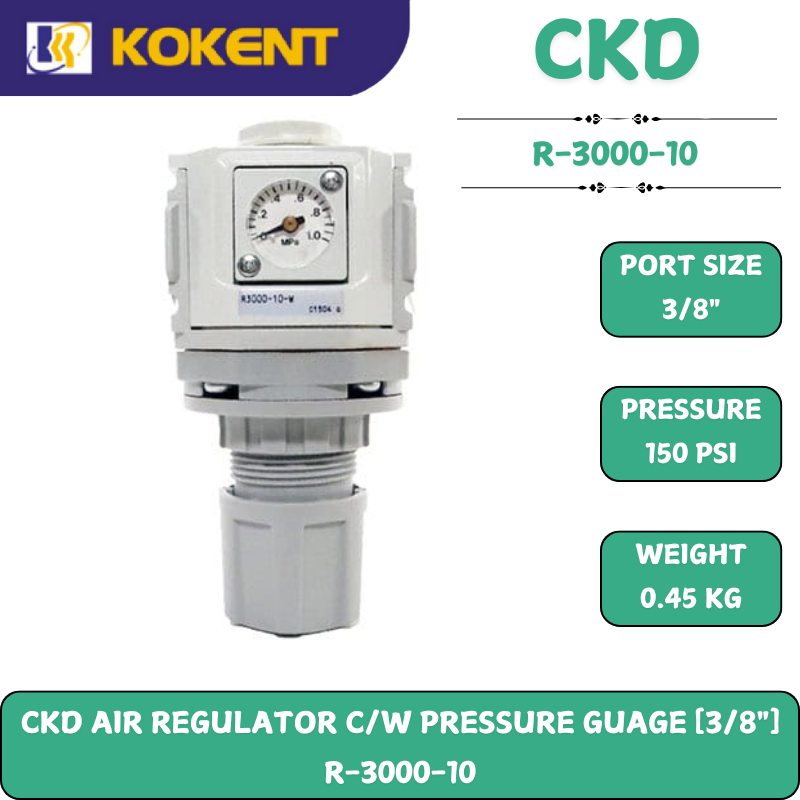

CKD AIR REGULATOR C/W PRESSURE GUAGE [3/8"] R-3000-10

CKD R3000-10 FRL Air Filter Regulator with Pressure Gauge 1/4"

CKD R3000-10 FRL Air Regulator is a compact, and pressure gauge embedded regulator. The pressure can be adjusted without tools.

FEATURES

Pressure adjustment without tools: Pressure adjustments can be made with one hand and locking performed with one push. Manual knob operation is easy when setting pressure as well

Easily handles panel mounting as well: When the panel mounting nut is loosened, the nut acts as a jack and enables the knob to be removed easily. Fix the nut to mount in the panel. The L type bracket is also installed similarly to the nut.

F.R.L. combination: Systems can be easily upgraded using unified key boundary dimensions and a diverse range of options and variations

SPECIFICATIONS

Working Fluid : Compressed air

Maximum Working Pressure : 1.0MPa

Proof Pressure : 1.5MPa

Working Pressure : 0.05 ~ 0.85MPa

Ambient Temperature : 5 ~ 60°C

Pressure Relief : With relief mechanism

Port Size : 1/4"

Weight : 0.45kg

WHAT'S IN THE BOX

1x CKD R3000-10 FRL Air Filter Regulator with Pressure Gauge 1/4 Inch

1x Operating Manual
