Complex Chamfer (II)

Complex Chamfer (II)
Complex Chamfer (II)

Complex Chamfer (II)

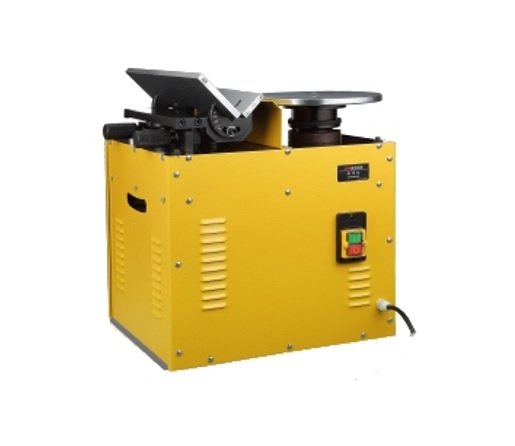

Product Code: MR-R800B
Availability: Pre Order
Loading ...
Share:
  • Its suitable for regular and irregular parts of mechanism or mold. The angle of straight line part can be adjust from 15 degree to 45 degree.
  • The machine adopt Swedish SKF bearing and imported digital cuttings
Model MR-R800B MR-R800B
Chamfering Range 0-3mm (Straight) 0-2.5mm (Curved)
Chamfering Angle 15⁰-45⁰ (Straight) 45⁰ (Curved)
Power 380V / 750W 380V / 750W
Speed 8500RPM (Straight) 12000RPM (Curved)
Dimension 53x44x69cm 53x44x69cm
Weight 68KG 68KG
