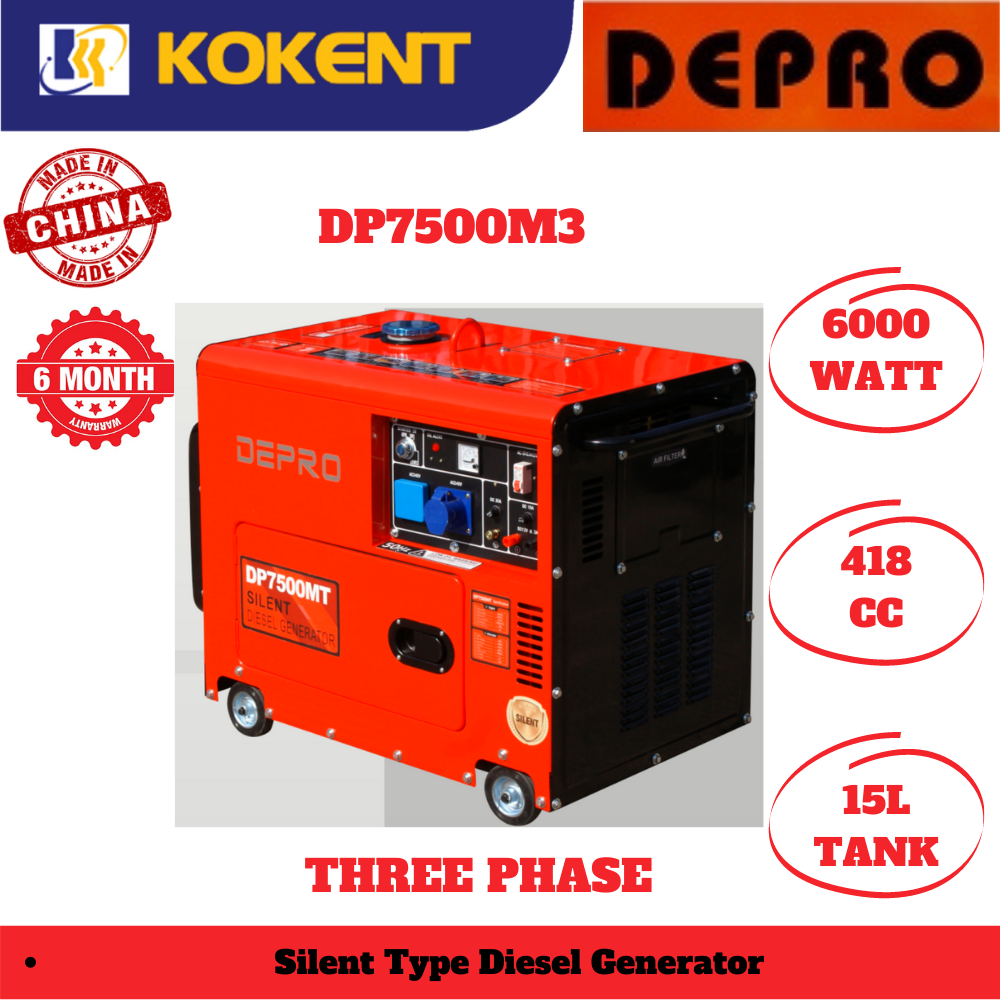

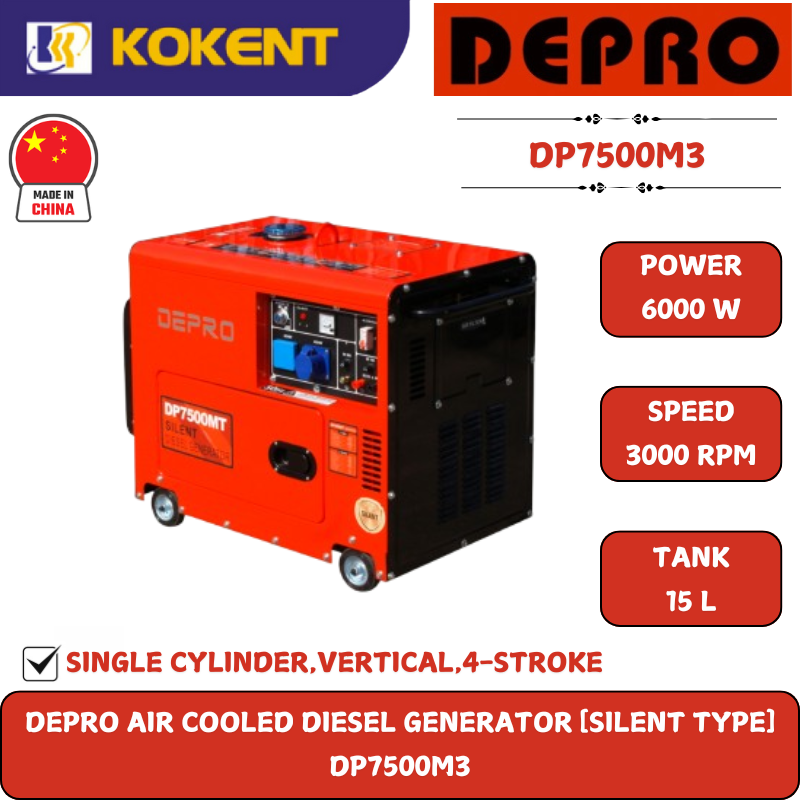

Depro Air Cooled Diesel Generator (SILENT TYPE) DP7500M3
Product Code: DP7500M3
Availability: In Stock
| Model | DP7500M3 |
| Rated Frequency | 50 |
| Rated Output (kVA) | 5.63 |
| Max.output (kVA) | 6.25 |
| Rated voltage (v) | 240/415 |
| Rated rotation speed (r/min) | 3000 |
| Phase No | Single Phase |
| Power factor (cos) | 0.8 |
| Insulation Grade | F |
| Pole Number | 2 |
| Excitation mode | Self-excitation & constant voltage (AVR) |
| DC12V output | Connection pole output |
| Stucture type | Silent Type |
| Engine Model | DP186 |
| Engine type | Single cylinder,Vertical,4-Stroke,Direct Injection |
| Cylinder No Bore x stroke | 1-86x75 mm |
| Displacement (ml) | 418 |
| Rated power [kW (r/min)] | 5.7/3000 |
| Compression ratio | 19:01 |
| Lubrication system | Pressure splashed |
| Starting system | Electric start |
| Lube oil brand | CD grade or SEA10W-30,15W-40 |
| Lube capacity (L) | 1.65 |
| Battery Capacity (v-Ah) | 12V 30AH |
| Fuel tank capacity (L) | 15 |
