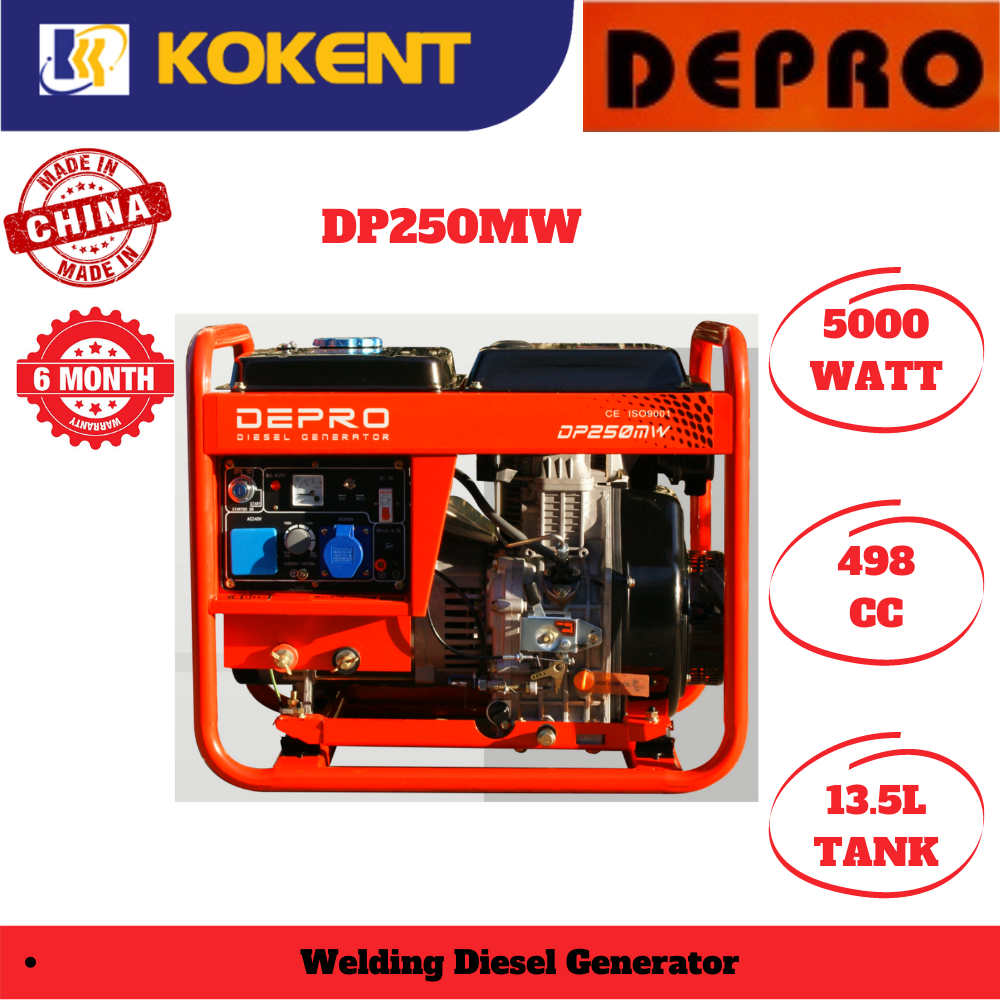

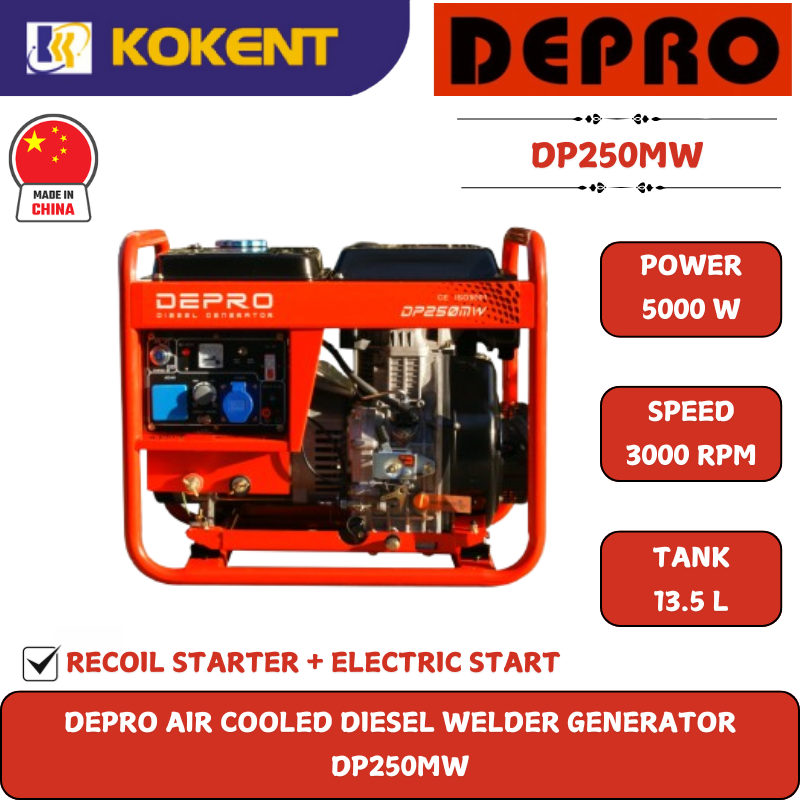

Depro Air Cooled Diesel Welder Generator DP250MW
Product Code: DP250MW
Availability: In Stock
| Model | DP250MW |
| Rated Frequency (Hz) | 50 |
| Max Power (kw) | 5.0 |
| Rated Voltage (v) | 240 |
| Rated Speed (r/min) | 3000 |
| Phase No | Single Phase |
| Power Factor (cos) | 1 |
| No load welding voltage (v) | 65 - 70 |
| Welding voltage | 25 - 30 |
| Welding load continous ratio | 60 % |
| Welding Current adjustment range (A) | 50 - 200 |
| Insulation grade | F |
| Engine model | DP192 |
| Displacement (L) | 0.498 |
| Bore x stroke (mm) | 1-92x75 |
| Compression ratio | 19:01 |
| Lube oil brand | CD grade or SAE10W-30,15W-40 |
| Lub capacity (L) | 1.65 |
| Starting system | Recoil + electric start |
| Battery capacity (V-Ah) | 12V-30Ah |
| Fuel Type | 0# (summer) -10# (winter) |
| Fuel tank capacity (L) | 13.5 |
