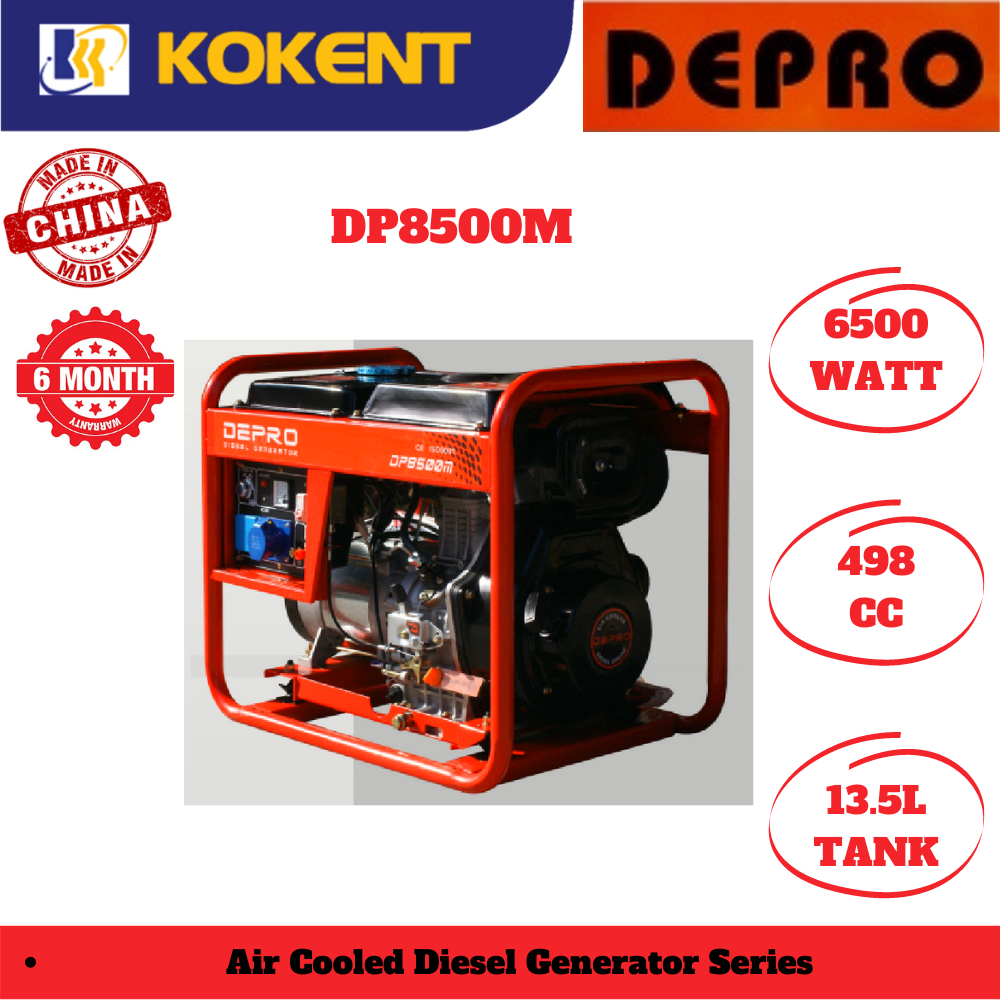

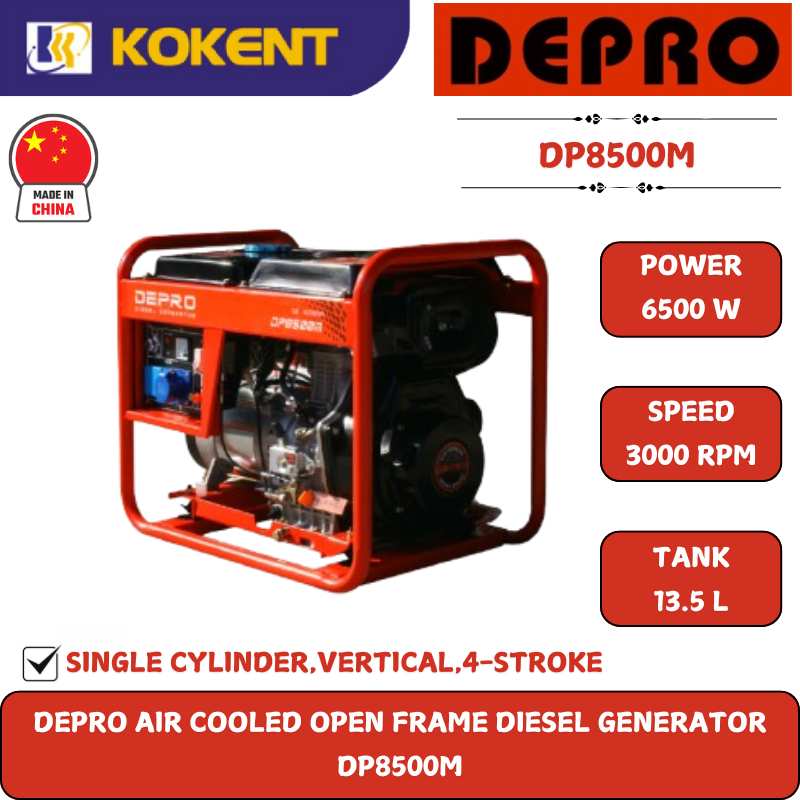

Depro Air Cooled Open Frame Diesel Generator DP8500M
Product Code: DP8500M
Availability: In Stock
| Model | DP8500M |
| Rated Frequency (Hz) | 50 |
| Rated Output (kW) | 6.0 |
| Max.output (kW) | 6.5 |
| Rated voltage (V) | 240 |
| Rated rotation speed (r/min) | 3000 |
| Phase no | Single phase |
| Power factor (cos) | 1 |
| Insulation grade | F |
| Pole number | 2 |
| Excitation mode | Self-excitation & constant voltage (AVR) |
| DC12V output | Connection pole output |
| Structure type | Open type |
| Engine model | DP192 |
| Engine type | Single cylinder,vertical,4-stroke,direct injection,air-cooled |
| Cylinder No,bore x stroke | 1-92x75 |
| Displacement (ml) | 498 |
| Engine rated power [kW/(r/min)] | 7.6 / 3000 |
| Compression ratio | 19:01 |
| Lubrication system | Pressure splashed |
| Starting system | Recoil - electrix start |
| Lube oil brand | CD grade or SAE10W,15W-40 |
| Lube capacity (L) | 1.65 |
| Battery Capacity (v-Ah) | 12V-30AH |
| Fuel tank capacity (L) | 13.5 |
