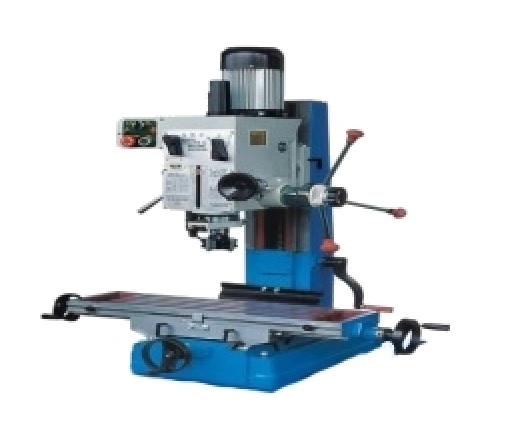

Drilling & Milling (II)
Drilling & Milling (II)

Drilling & Milling (II)

Product Code: ZX 7045
Availability: Pre Order
Loading ...
017 432 8850019 209 0701
Share:
Model ZX7045
Max. Drilling Capacity (mm) 45
Max. Face mill capacity (mm) 80
Diameter of vertical milling (mm) 28
Spindle travel (mm) 120
Distance spindle axis to column generating line (mm) 260
Max. Distance spindle nose to table (mm) 475
Spindle taper MT4
Spindle speeds range (r/min) 95 - 1600
Spindle speeds series 6
Dimension of worktable surface (mm) standard 730x210, optional 820x240
Table travel (mm) standard 450x170, optional 540x170
Overall height (mm) 1050
Motor (W) single phase 750, three phase 1100
G.W/N.W (kg) 318/278
Packing dimension (cm) 86x74x116, 97x77x116
