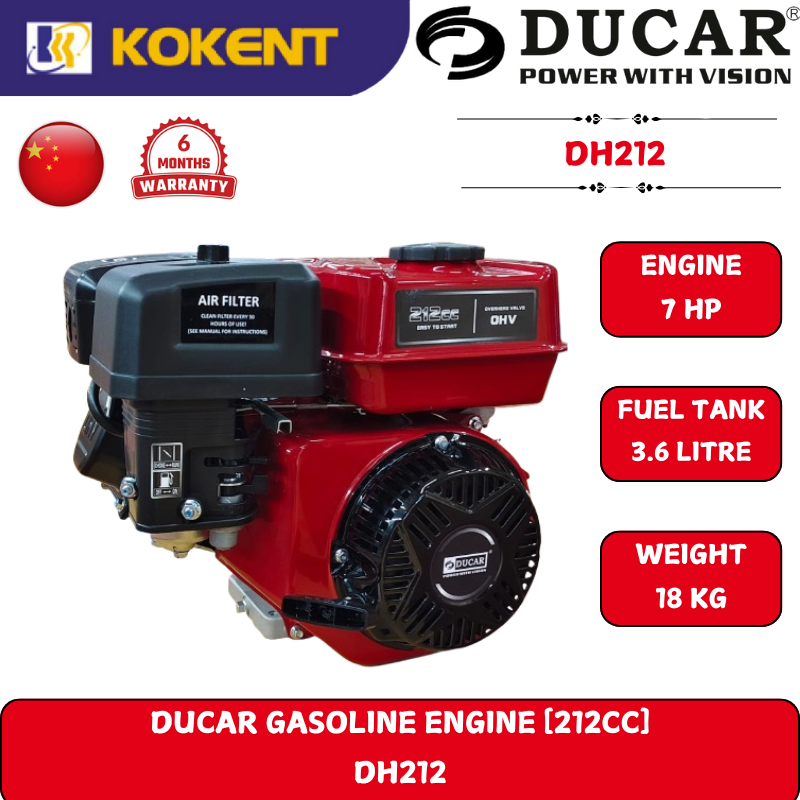

DUCAR GASOLINE ENGINE [212CC] DH212 7HP

Ducar DH212 Engine OHV Petrol

Features :

It is one of the most versatile and powerful motors used for cultivators, lawn mowers, generators, water pumps and construction equipment.

It has a modern design, it is made of quality materials that ensure outstanding performance and at the same time being very easy to maintain.

The 4-stroke engines in the DUCAR series have an easy start, providing power and torque while being protected from oil shortages.

⭐ For cultivators, lawn mowers, generators, water pumps and construction equipment;

⭐ Easy start;

⭐ Torque protected in the absence of oil;

⭐ Modern design.

Model : 170F-1 (DH212)

Engine type: 4-stroke engine, OHV, petrol

Engine Type : Horizontal

Displacement : 212cc

Bore : 70mm (2.76in)

Stroke : 55mm (2.16in)

Starting Type : Recoil Start

Ignition System : T.C.I

Power : 5.1kw

Torque : 13nm

Fuel Tank Capacity : 3.6L

Engine Oil Capacity : 0.6L

Spark Plug Gap : 0.7-0.8mm

Spark Plug Torque : 18-22N.m

Intake Valve Clearance : 0.08-0.12mm

Exhaust Valve Clearance : 0.13-0.18mm

Dimension : 420 x 340 x 355mm

Dry Weight : 18kg

Note:

Please allow minor error due to manual measurement.

Due to the difference between different monitors, the picture may not reflect the actual color of the item.

Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.

The measurement allowed error is +/- 1-3cm
