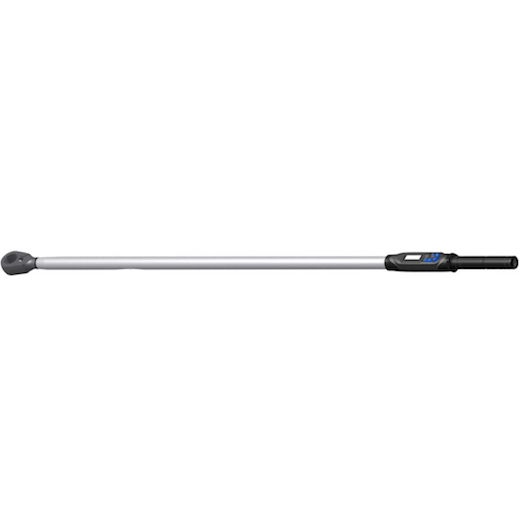

Eclatorq Digital Torque Wrench 1" 300-1500Nm IP8-1500BN

Eclatorq Digital Torque Wrench 1
Eclatorq Digital Torque Wrench 1

Eclatorq Digital Torque Wrench 1" 300-1500Nm IP8-1500BN

Product Code: IP8-1500BN
Availability: Pre Order
Loading ...
Share:

Model: IP8-1500BN
1" Digital torque wrench from 300 to 1500Nm.

Price inclusives 6%GST.

Features

  • Accuracy: ±2.5% (CW), ±3.5% (CCW)
  • 2 selections of measuring units
    a) N-m
    b) ft-lb
  • 12 LED lights : 2 red & 10 green
  • 110 operating hours
  • 1 year Standby
  • Drop tested: 1meter
  • Vibration tested: 10G
  • Life time: 10000 cycles
  • Environmental Test: Passed
  • Electromagnetic Compability Test: Passed

Specifications

Accuracy ±2.5% (CW) ±3.5% (CCW)
Square Drive 1"
Max. Operation Range 1500N-m / 1106ft-lbs
Measuring Range 300-1500N-m / 221-1106ft-lb
Resolution 1N-m / 1ft-lb
Data Memory Size 50
Button 5
Number of Presets 9
Operation Mode Peak Hold / Track
Unit Selection N-m, ft-lbs
Head Type Level Type Ratchet (48 Gear Teeth)
Battery AA x 2unit
Working Temperature -10° to 60°C
Storage Temperature -20° to 70°C
Humidity Up to 90% non-condensing
Length 1800mm
Weight 5kg
