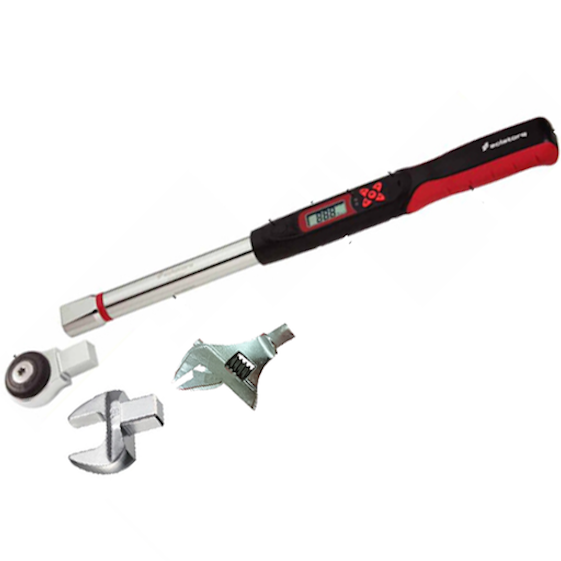

ECLATORQ Digital Torque Wrench 1/2" 6.8-135Nm DKC4-135BN

  1. Home
  2. Product
  3. Handling Product
  4. Digital Torque Wrench
ECLATORQ Digital Torque Wrench 1/2
ECLATORQ Digital Torque Wrench 1/2

ECLATORQ Digital Torque Wrench 1/2" 6.8-135Nm DKC4-135BN

Product Code: DKC4-135BN
Availability: Pre Order
Loading ...
017 432 8850019 209 0701
Share:

Model: DKC4-135BN
1/2" Digital torque wrench from 6.8 to 135Nm with interchangeable head.
**Accessories is NOT included.

Price inclusives 6%GST.

Features

  • Accuracy: ±2% (CW), ±3% (CCW)
  • 4 selections of measuring units
    a) N-m
    b) ft-lb
    c) in-lb
    d) kg-cm
  • Interchangeable head
  • 12 LED lights : 2 red & 10 green
  • 110 operating hours
  • 1 year Standby
  • Drop tested: 1meter
  • Vibration tested: 10G
  • Life time: 10000 cycles
  • Environmental Test: Passed
  • Electromagnetic Compability Test: Passed

Specifications

Accuracy ±2% (CW) ±3% (CCW)
Square Drive 1/2"
Max. Operation Range 135N-m / 99.5ft-lbs / 1195 in-lb / 1378kg-cm
Measuring Range 6.8-135N-m / 5-99.5ft-lb / 60-1195in-lbs / 69-1378kg-cm
Resolution 0.1N-m / 0.01ft-lb / 1in-lbs / 1kg-cm
Data Memory Size 50
Button 5
Number of Presets 9
Operation Mode Peak Hold / Track
Unit Selection N-m, ft-lbs, in-lbs, kg-cm
Head Type Level Type Ratchet (36 Gear Teeth)
Interchangeable head (12mm x 9mm)
Battery AA x 1unit
Working Temperature -10° to 60°C
Storage Temperature -20° to 70°C
Humidity Up to 90% non-condensing
Length 415mm
Weight 0.96kg
