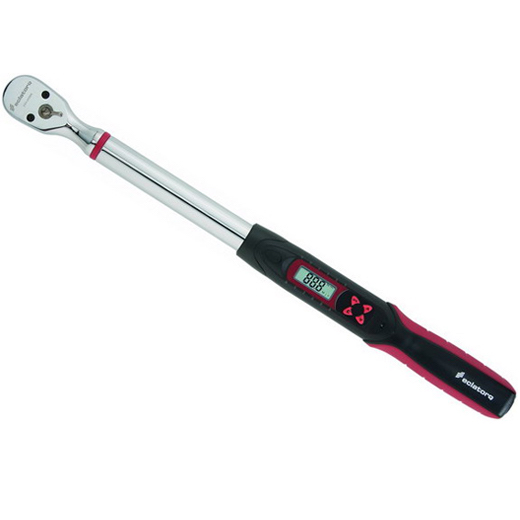

Eclatorq Digital Torque Wrench 3/4" 25-500Nm DK6-500BN
Product Code: DK6-500BN
Availability: Pre Order
Model: DK6-500BN
3/4" Digital torque wrench from 25 to 500Nm.
Price inclusives 6%GST.
Features
- Accuracy: ±2.5% (CW), ±3.5% (CCW)
- 4 selections of measuring units
a) N-m
b) ft-lb
c) in-lb
d) kg-cm - 12 LED lights : 2 red & 10 green
- 110 operating hours
- 1 year Standby
- Drop tested: 1meter
- Vibration tested: 10G
- Life time: 10000 cycles
- Environmental Test: Passed
- Electromagnetic Compability Test: Passed
Specifications
| Accuracy | ±2.5% (CW) ±3.5% (CCW) |
| Square Drive | 3/4" |
| Max. Operation Range | 500N-m / 368.7ft-lbs / 4424in-lb / 5102kg-cm |
| Measuring Range | 25-500N-m / 18.4-368.7ft-lb / 221-4424in-lbs / 255-5102kg-cm |
| Resolution | 0.1N-m / 0.01ft-lb / 1in-lbs / 1kg-cm |
| Data Memory Size | 50 |
| Button | 5 |
| Number of Presets | 9 |
| Operation Mode | Peak Hold / Track |
| Unit Selection | N-m, ft-lbs, in-lbs, kg-cm |
| Head Type | Level Type Ratchet (36 Gear Teeth) |
| Battery | AA x 1unit |
| Working Temperature | -10° to 60°C |
| Storage Temperature | -20° to 70°C |
| Humidity | Up to 90% non-condensing |
| Length | 950mm |
| Weight | 2.99kg |
