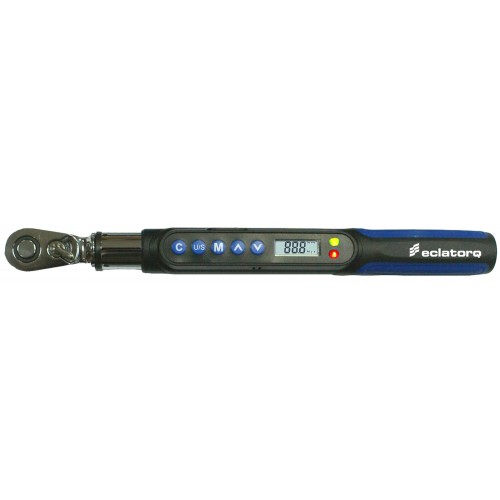

Eclatorq Mini Digital Torque Wrench 1/4" 0.3-6Nm DM2-006CN

Eclatorq Mini Digital Torque Wrench 1/4
Eclatorq Mini Digital Torque Wrench 1/4

Eclatorq Mini Digital Torque Wrench 1/4" 0.3-6Nm DM2-006CN

Product Code: DM2-006CN
Availability: Pre Order
Loading ...
Share:

Model: DM2-006CN
1/4" Digital Torque Wrench with range from 0.3 to 6Nm.

Price inclusives 6%GST.

Features

  • Accuracy: ±3% (CW)
  • 4 selections of measuring units
    a) N-m
    b) ft-lb
    c) in-lb
    d) kg-cm
  • 2 Bright LED lights : 1 red & 1 green
  • 12 hours operating hours
  • 1 year Standby
  • Drop tested: 1meter
  • Vibration tested: 10G
  • Life time: 10000 cycles
  • Environmental Test: Passed
  • Electromagnetic Compability Test: Passed

Specifications

Accuracy ±3% (CW) ±4% (CCW)
Square Drive 1/4"
Max. Operation Range 6N-m / 4.424ft-lbs / 53.09 in-lb / 61.22kg-cm
Measuring Range 0.3-6N-m / 0.221-4.424ft-lb / 2.65-53.09in-lbs / 3.06-61.22kg-cm
Resolution 0.1N-m / 0.01ft-lb / 0.01in-lbs / 0.01kg-cm
Data Memory Size 50
Button 5
Number of Presets 9
Operation Mode Peak Hold / Track
Unit Selection N-m, ft-lbs, in-lbs, kg-cm
Head Type Level Type Ratchet (60 Gear Teeth)
Battery AAA x 1unit
Working Temperature -10° to 60°C
Storage Temperature -20° to 70°C
Humidity Up to 90% non-condensing
Length 207mm
Weight 0.26kg
