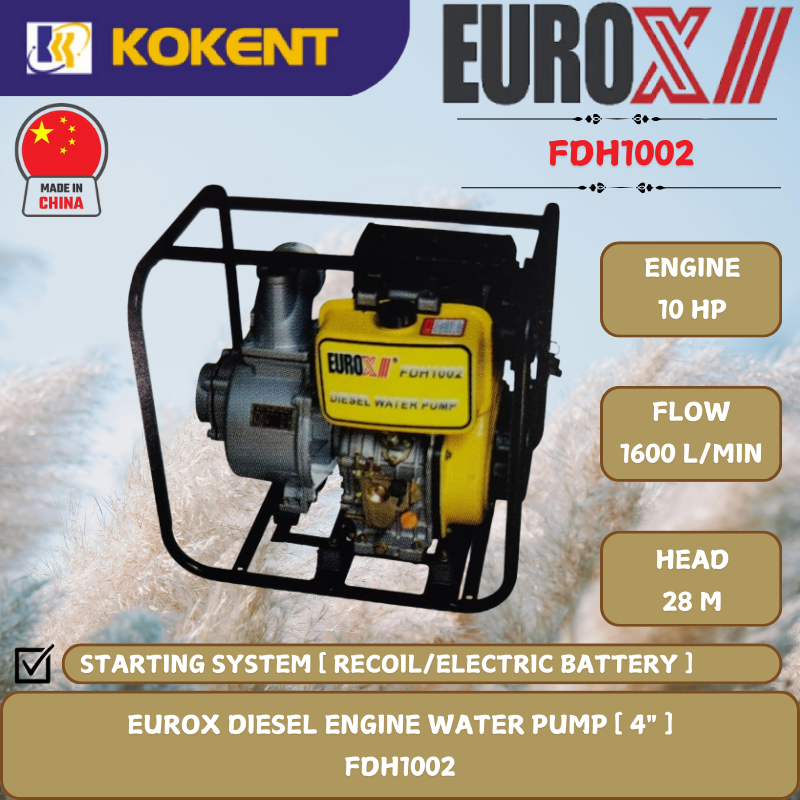

EUROX DIESEL ENGINE WATER PUMP [ 4".10HP.28M.1600L/MIN ] FDH1002

Engine Type
Single-Cylinder, 4-Stroke, Air-Cooled, Diesel Engine
Suction (mm/inch)
100mm/3 inch
Rated Capacity (m³/h)
96 m³/h
Discharge Port Dia (mm)
100 mm
Self - Priming Time (s/4m)
180
Max. Suction Head (m)
8 m
Max. Head (m)
28 m
Max. Output (HP/Rpm)
10/3600
Fuel Tank Capacity (L)
5.4
Lubrication Oil
SAE 10W/30
Lubrication Oil Volume (L)
1.65
Net/Gross Weight (kg)
69/72
Dim (LxWxH)(mm)
662 x 490 x 642
