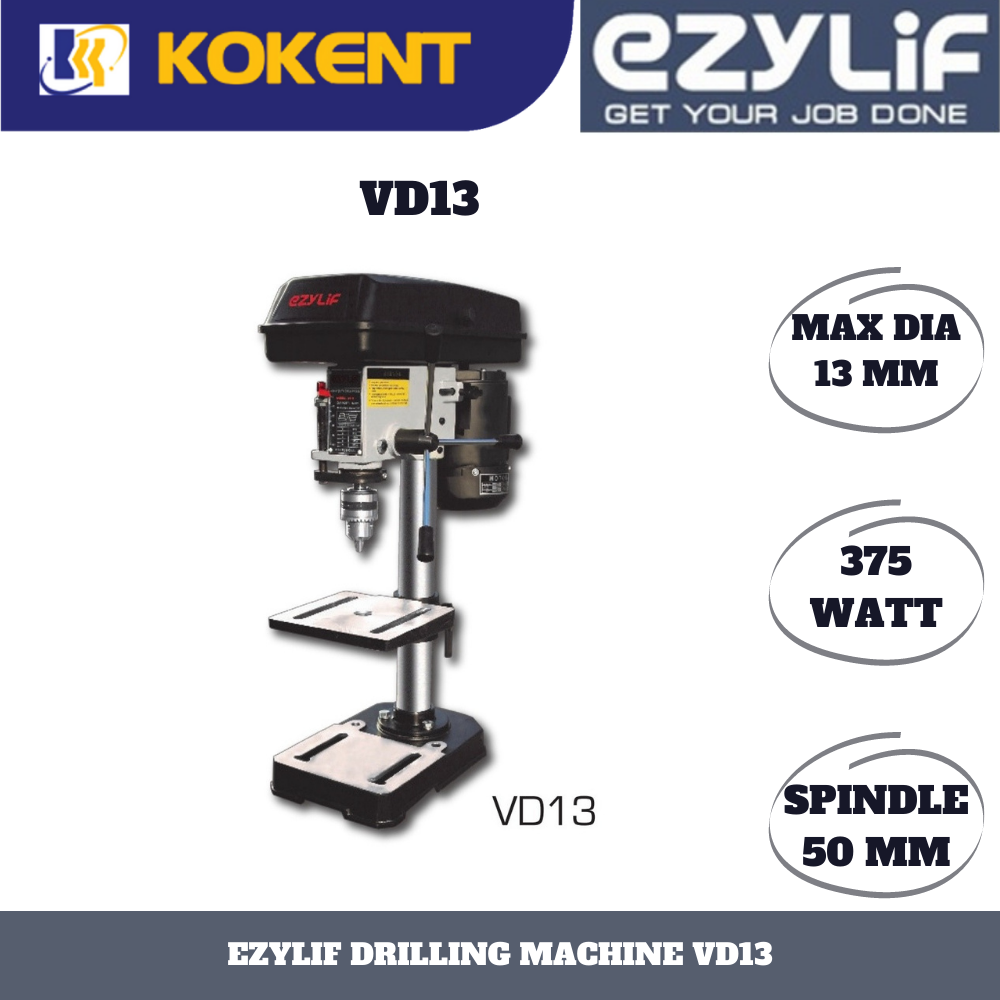

Ezylif Bench Drilling Machine VD13

Technical Data

Model: VD13
Max Driling Diameter: 13 mm (1/2")
Motor Power: 375 w
Spindle Travel: 50 mm
Class of Speed: 5
Speed 50Hz: 620-2620 rpm
Spindle Taper: B16
Max Distance:
• Spindle axis to surface of column - 105 mm
• Spindle end to surface of table - 220 mm
• Spindle end to surface - 300 mm
Swing: 210 mm
Table Size: 160 x 160 mm
Base Size: 290 x 190 mm
Column Diameter: 46 mm
Height: 580 mm
Packing Dimension: 430 x 340 x 230 mm
Net Weight: 19 kg
Gross Weight: 20 kg

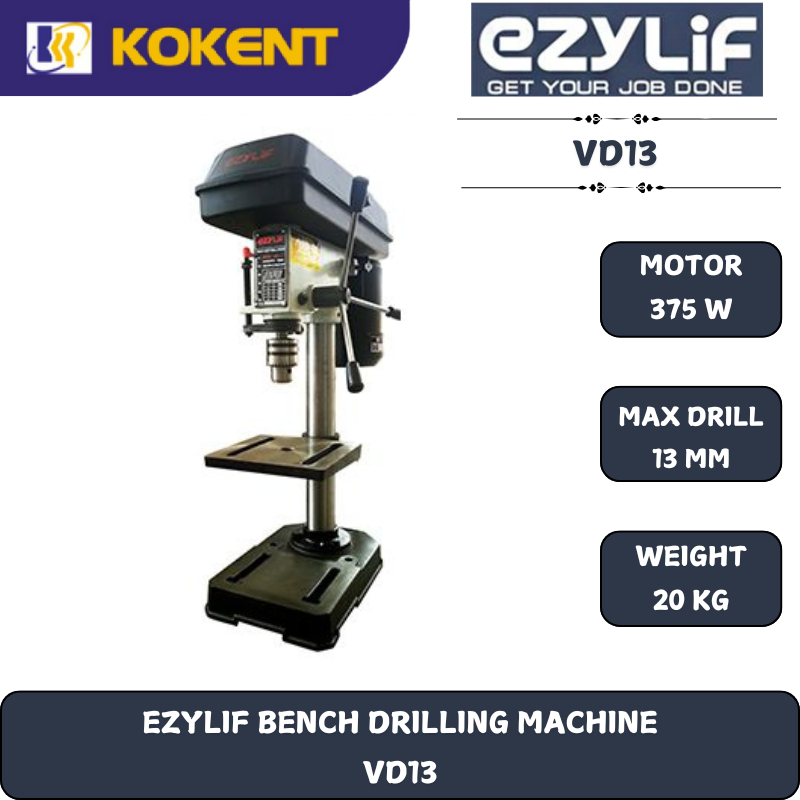

Ezylif Bench Drilling Machine VD13

Ezylif Machinery - Ezylif Bench Drilling Machine VD13

• Adjustable Depth Stop
• Table Tilts From Degree 0 to 40
• 375w Motor Spins At 5 Different Speed
• Quick Belt tension Release for easy Speed Changes
• Easily Assembling Instruction
